NASA’s Solar Dynamics Observatory Catches Lunar Freeze Frame

The headshot image of Katy Mersmann

Katy Mersmann

The headshot image of Sarah Frazier

Sarah Frazier

Mar 07, 2019
Article

Editor’s note, March 13, 2019: This story has been updated with higher-resolution, higher-frame rate data of the transit. The original animated gif is available for download here.

On the evening of March 6, 2019, the Moon started to transit the Sun, then doubled back and retraced its steps in the other direction — at least, that’s what it looked like from the perspective of NASA’s Solar Dynamics Observatory, or SDO, in orbit around Earth.

The relative speeds and positions of the Moon, the Sun and NASA’s Solar Dynamics Observatory resulted in this unusual lunar transit where the Moon appears to pause and reverse course.
Credits: NASA/Goddard/SDO

SDO sees lunar transits regularly, when the Moon passes in front of its view of the Sun. The Moon’s unusual apparent behavior during this particular transit is a phenomenon similar to retrograde motion: When a celestial object appears to move backwards because of the way that different objects move at different speeds at different points in their orbits. In this case, the first part of the transit — when the Moon moves left to right — appears to be “reverse” motion. SDO overtakes the Moon, moving at about 1.9 miles per second perpendicular to the Sun-Earth line compared to the Moon’s 0.6 miles per second, making the Moon appear to move in the opposite direction you would see if you were standing still on Earth.

The second part of the transit — when the Moon appears to pause and rewind — happens as SDO enters the dusk part of its orbit and begins moving away from the Moon, nearly parallel to the shadow it’s casting through space. At that point, the Moon once again moves faster than SDO – when compared to the Sun-Earth line – overtaking it.  So the spacecraft now sees it move in the other direction — the same direction that a stationary observer on Earth would see.

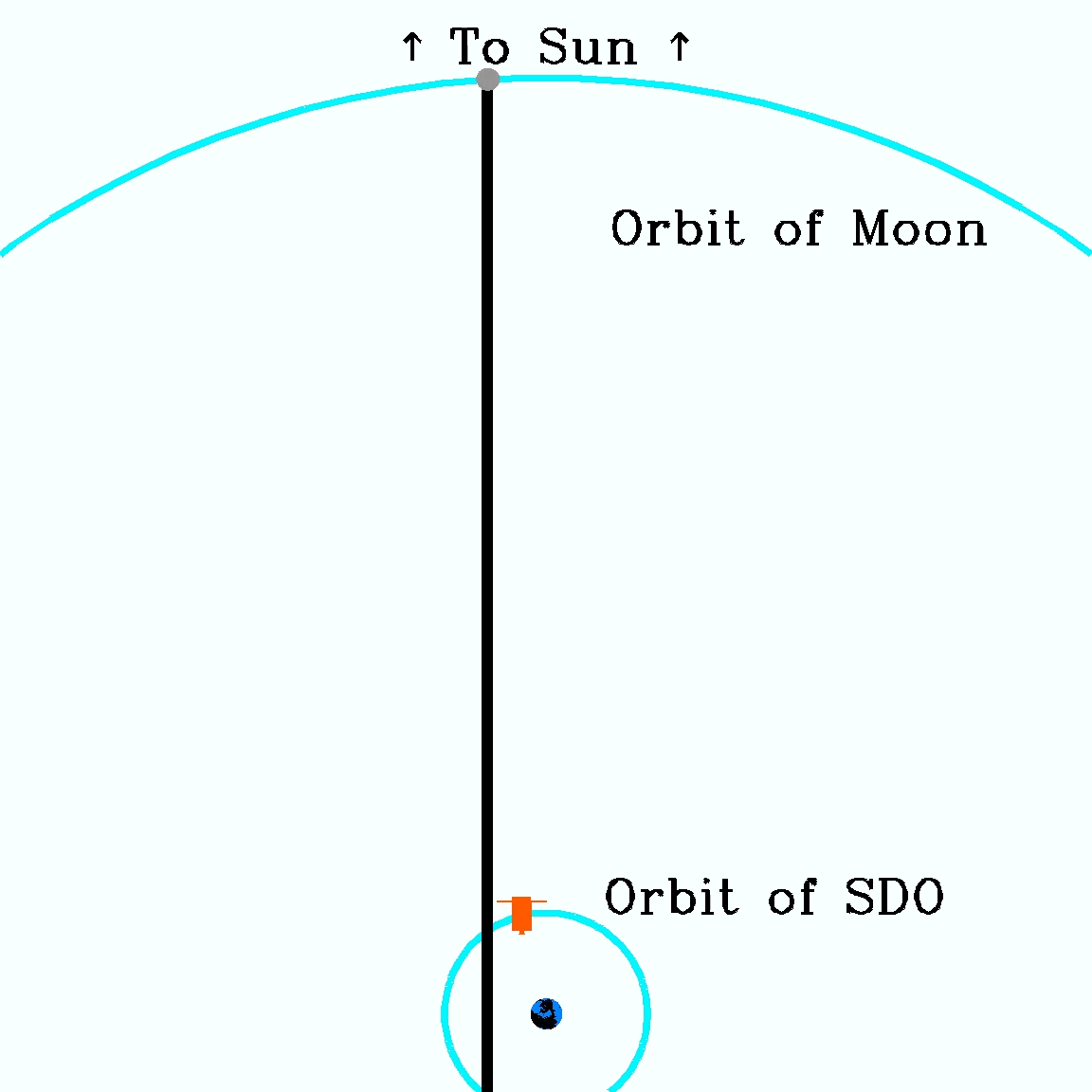

Animation depicting orbits of SDO and Moon (orbits to scale). The orbit of SDO is a small circle with the orbit of the Moon making up a much larger concentric circle. A straight vertical line orbits moves along the circumference of both.

This isn’t the first time that SDO has seen the Moon seem to move in two different directions during a lunar transit. This time, the Moon just happened to remain in SDO’s sight as it began the dusk part of its orbit, leading to the freeze-frame effect.

This lunar transit lasted about four hours, from 5 p.m. to 9:07 p.m. EST, and, at peak, the Moon covered 82 percent of the Sun’s face. The Moon’s edge appears sharp because the Moon has no atmosphere. On the other hand, Earth eclipses of the Sun have a blurry edge when seen by SDO, because the gases in Earth’s atmosphere let through only part of the Sun’s light.

By Sarah Frazier
NASA’s Goddard Space Flight Center, Greenbelt, Md.
