FLUTE aims to find out if giant lenses and mirrors – the high-quality optical components needed for future large-aperture space telescopes – can be created from liquids in space.
The Fluidic Telescope (FLUTE) project team, jointly led by NASA and Technion – Israel Institute of Technology, envisions a way to make huge circular self-healing mirrors in-orbit to further the field of astronomy. Larger telescopes collect more light, and they allow astronomers to peer farther into space and see distant objects in greater detail. These next-generation large space observatories would study the highest priority astrophysics targets, including first generation stars – the first to shine and flame out after the Big Bang – early galaxies, and Earth-like exoplanets. These observatories could help address one of humanity’s most important science questions: “Are we alone in the universe?”
Like a carry-on suitcase, payloads launching to space need to stay within allowable size and weight limits to fly. Already pushing size limits, the state-of-the-art 21 foot (6.5 meter) aperture James Webb Space Telescope needed to be folded up origami-style – including the mirror itself – to fit inside the rocket for its ride to space. The aperture of an optical space observatory refers to the size of the telescope’s primary mirror, the surface that collects and focuses incoming light.
The aperture for the space observatory envisioned by FLUTE researchers under the current concept would be approximately 164 feet (50 meters) in diameter – half as long as a football field.
Conventional technology for making optical components for telescopes is literally a grind. It involves an iterative process of sanding and polishing solid materials, such as glass or metal, to shape the precise curved surfaces of lenses and mirrors needed. Using current technologies, scaling up space telescopes to apertures larger than approximately 33 feet (10 meters) in diameter does not appear economically viable.
FLUTE’s novel cost-effective technology approach, in contrast, takes advantage of the way fluids naturally behave in microgravity.
All liquids have an elastic-like force that holds them together at their surface. This force is called surface tension. It’s what allows some insects to glide across water without sinking and gives water droplets their shape.
On Earth, when droplets of water are small enough – 0.08 inches (2 millimeters) or smaller – surface tension overcomes gravity, and they remain perfectly spherical, much like droplets of morning dew beading into tiny spheres on plant leaves. If a droplet grows much larger, it gets squished under its own weight. But in space, where fluids are free-floating, unhindered by gravity, even large amounts of liquids assume the most energy efficient shape possible, a perfect sphere.
Liquids can cling to surfaces due to a physical property called adhesion. In microgravity, if a sufficient amount of liquid is made to adhere to the interior surface of a circular, ring-like frame, the liquid will stretch across the inside of the frame and naturally form a curved shape – called a spherical section – thanks to surface tension.
By using the right volume of liquid, it is possible to make the surface of the liquid curve inward instead of bulging outward. If the liquid is reflective, that inwardly curved surface can serve as a telescope mirror.
FLUTE would launch liquids to space as the raw material to make optical components in orbit. The primary mirror would form within a huge circular frame and remain in liquid state with an extremely smooth surface for collecting light. FLUTE’s technology approach is theoretically able to scale up to very large sizes. The technology could potentially enable telescopes with apertures measuring 10 times – or even 100 times – larger than telescopes to-date.
A unique feature of the liquid mirror would be its ability to self-repair if damaged in space. For instance, if a micrometeorite impacts the mirror’s surface, it would naturally heal itself within a short period of time.
The FLUTE team has conducted small-scale experiments in shaping lenses from liquids in different environments: First using neutral buoyancy space analog conditions in a ground laboratory and then in a series of parabolic microgravity flights and aboard the International Space Station.
With the support of a NASA Innovative Advanced Concepts (NIAC) Phase I award, the team is working to analyze options for the key components of a fluid telescope observatory, further develop the mission concept, and create an initial plan for a subscale small spacecraft demonstration in low-Earth orbit.
Milestones:
- December 2021: The FLUTE team conducted parabolic flight tests aboard Zero Gravity Corporation’s G-FORCE ONE, a modified airplane that provides brief periods of microgravity to enable technology evaluation. The experiment tested the formation of free-standing liquid lenses from synthetic oils of different viscosities.

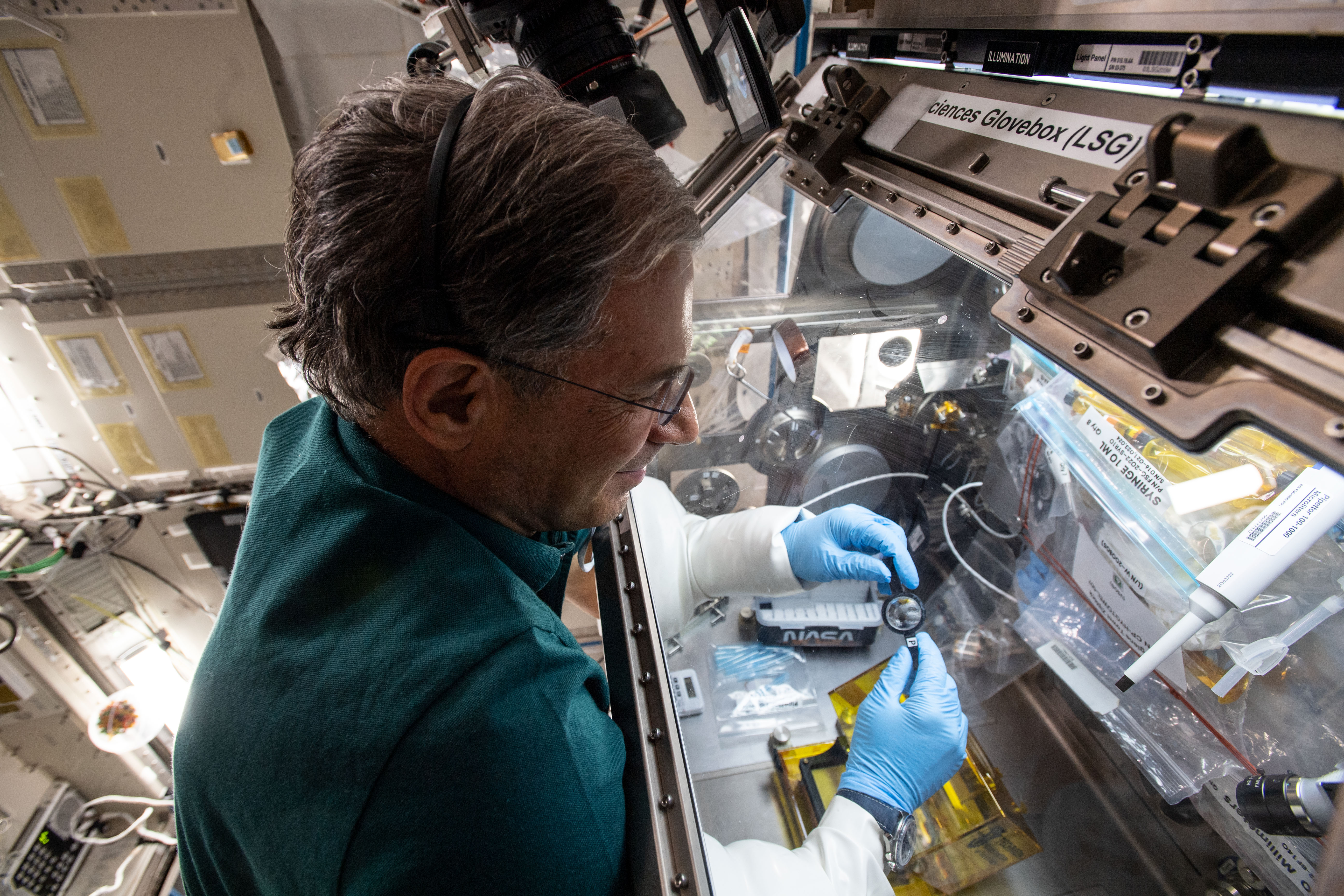

- April 2022: Axiom-1 astronaut Eytan Stibbe conducted a microgravity experiment aboard the space station. The experiment used liquid polymers to form lenses that were hardened in orbit and returned to Earth for analysis. An additional, educational experiment was also performed, during which a large lens — which remained in its liquid state — was formed using regular water.

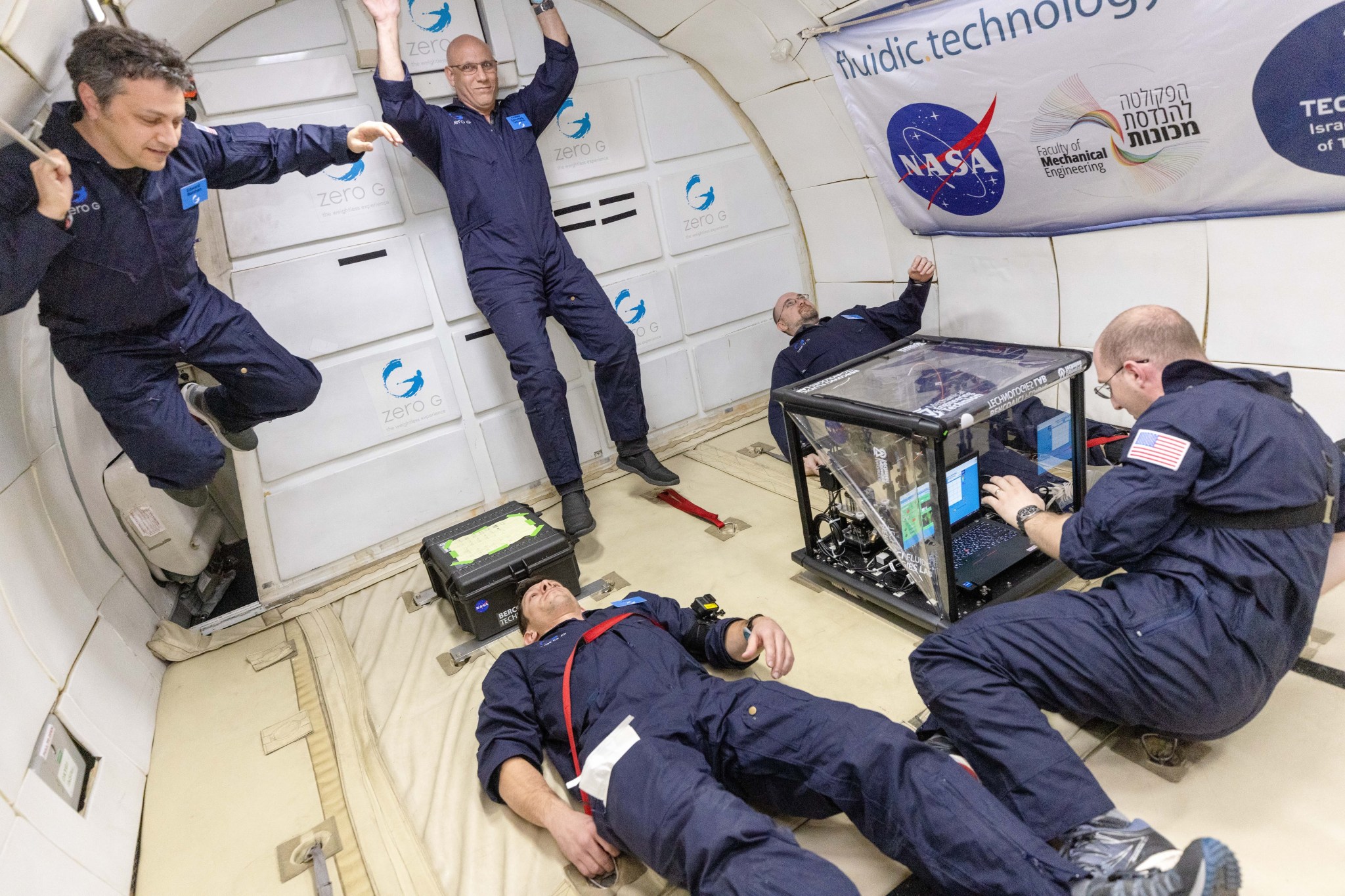

- November 2022: The FLUTE team conducted parabolic flight tests aboard Zero Gravity Corporation’s G-FORCE ONE. This set of experiments focused on creating liquid mirrors rather than lenses, which was done using ionic liquids and an alloy of gallium. Gallium is a non-toxic, highly reflective metal that has a very low melting temperature. Pure gallium melts at approximately 85 degrees Fahrenheit, meaning you can melt a piece of gallium by just holding it in your hand.
- January 2023: FLUTE was selected by NASA’s Innovative Advanced Concepts (NIAC) program for a Phase I study.
- May 2024: FLUTE was selected by NASA’s Innovative Advanced Concepts (NIAC) program for a Phase II study.
Collaborators:
Research Team:
FLUTE researchers are based at:
- NASA’s Ames Research Center in California’s Silicon Valley,
- NASA’s Goddard Space Flight Center in Greenbelt, Maryland, and
- The Technion – Israel Institute of Technology, in Haifa, Israel.
Funding:
- FLUTE’s first set of parabolic flight experiments (December 2021) was funded by the Bercovici Fluidic Technologies Laboratory at Technion, by Technion Center for Security, Science, and Technology (CSST) Fund, and by NASA Ames Center Innovation Fund.
- The second set of parabolic flight experiments was supported by NASA’s Flight Opportunities program, NASA Ames Center Innovation Fund, NASA Goddard Center Innovation Fund, NASA Goddard Internal Research and Development Fund, and by the European Union (ERC, Fluidic Shaping, 101044516). The Flight Opportunities program is part of NASA’s Space Technology Mission Directorate (STMD) at the agency’s Headquarters in Washington and is based at NASA’s Armstrong Flight Research Center in Edwards, California. Ames manages the solicitation and evaluation of technologies to be tested and demonstrated on commercial flight vehicles.
- FLUTE’s space station experiment was conducted as part of the Rakia Mission, led by the Ramon Foundation, and was funded by Bercovici Fluidic Technologies Laboratory at Technion, the Israeli Ministry of Innovation, Science and Technology, NASA Ames Center Innovation Fund, and the ISS National Laboratory.
- STMD has supported FLUTE through the Center Innovation Fund, the Flight Opportunities program, and the NIAC program.
