The X-24B’s design evolved from a family of potential re-entry shapes proposed by the Air Force Flight Dynamics Laboratory, each with higher lift-to-drag ratios.

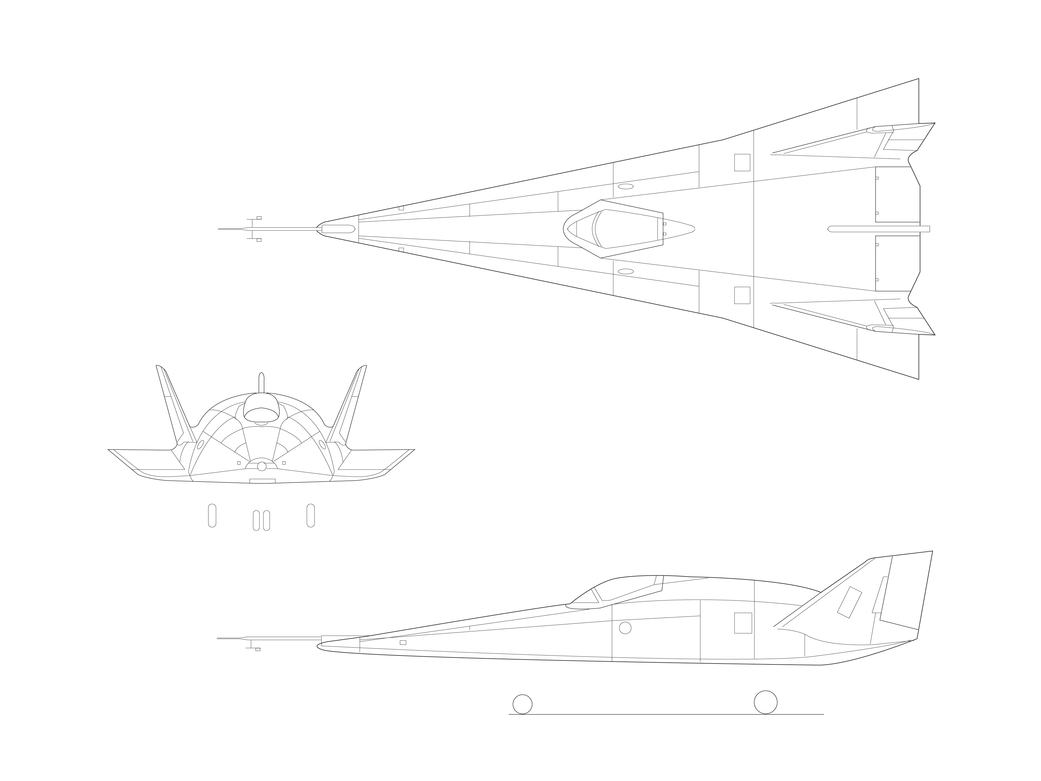

To reduce the costs of constructing a research vehicle, the Air Force returned the X-24A to Martin for modifications that converted its bulbous shape into one resembling a “flying flatiron” – a rounded top, flat bottom, and a double-delta planform that ended in a pointed nose.
Manke was first to fly the X-24B, a glide flight on Aug. 1, 1973. He was also the pilot on the first powered mission on Nov. 15, 1973.
Among the final flights with the X-24B were two precise landings on the main concrete runway at Edwards, which showed that accurate unpowered re-entry vehicle landings were operationally feasible. These missions, flown by Manke and Air Force Maj. Mike Love, represented the final milestone in a program that helped write the flight plan for today’s space shuttle landings.
The final powered flight with the X-24B was on Sept. 23, l975, flown by Bill Dana. It was also the last rocket-powered lifting body flight flown at Dryden. Ironically, it was Dana who also flew the last X-15 rocket plane mission about seven years earlier.
Top speed reached by the X-24B was 1,164 mph (Mach 1.75) by Love on Oct. 25, 1974. The highest altitude reached was 74,100 feet by Manke on May 22, 1975.
The X-24B is now on public display at the Air Force Museum, Wright-Patterson AFB,Ohio…Learn more
