European Service Module
The Orion European Service Module is the spacecraft’s powerhouse, supplying it with electricity, propulsion, thermal control, air, and water in space.
Service Module Overview
For the first time, NASA will use a European-built system as a critical element to power and propel an American spacecraft.
The spacecraft’s service module is being provided by ESA (European Space Agency) and its partner Airbus Space, extending NASA’s international cooperation from the International Space Station into deep space exploration.
The service module is ESA’s contribution to NASA’s Orion spacecraft that will send astronauts to the Moon and beyond. The service module is the powerhouse of the spacecraft as it provides in-space maneuvering capability, power, and other commodities necessary for life support, including consumables for the astronauts, like water, oxygen and nitrogen.
The European-built Service Module by the Numbers
3
The Orion spacecraft is made of three primary elements – the launch abort system, the crew module, and the service module.
4

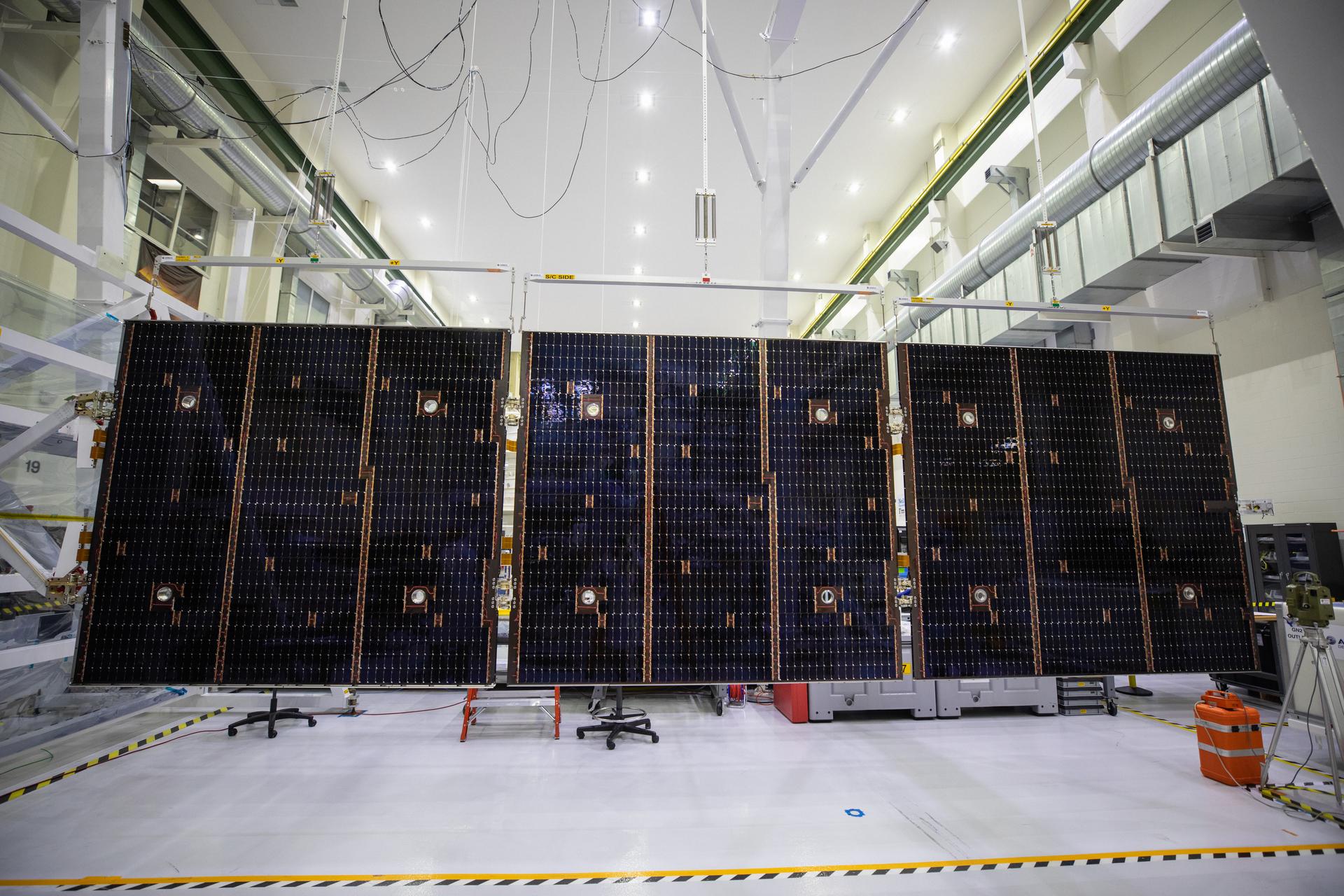

Four solar array wings provide power to the service module.
11
Number of European countries working to assemble the service module as part of an international agreement between NASA and ESA (European Space Agency).
33
Number of engines on the European Service Module.
1,000

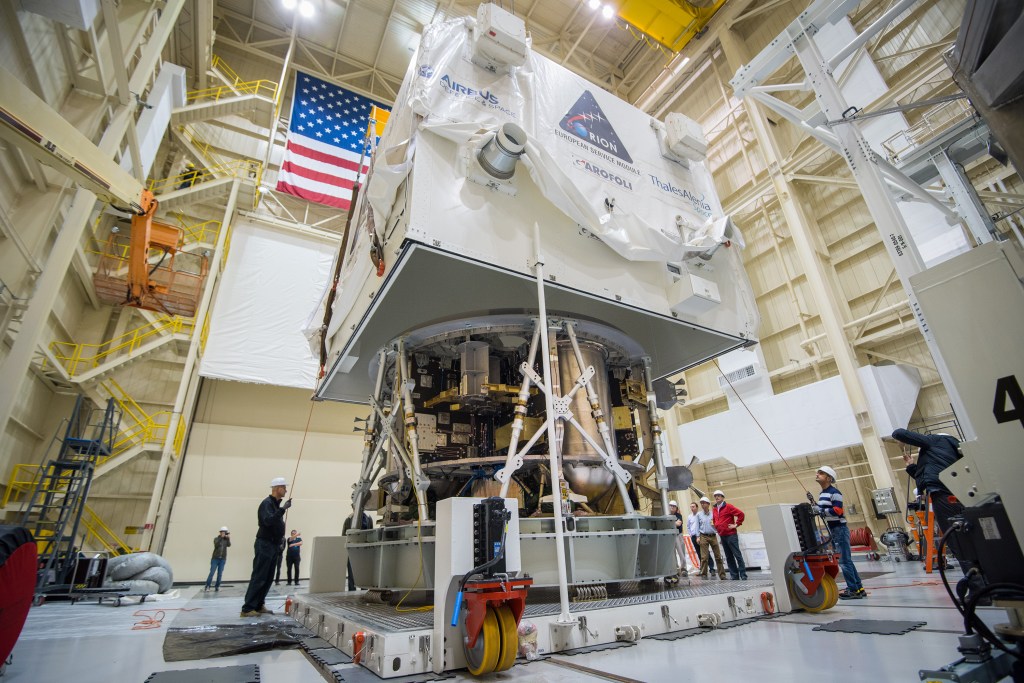

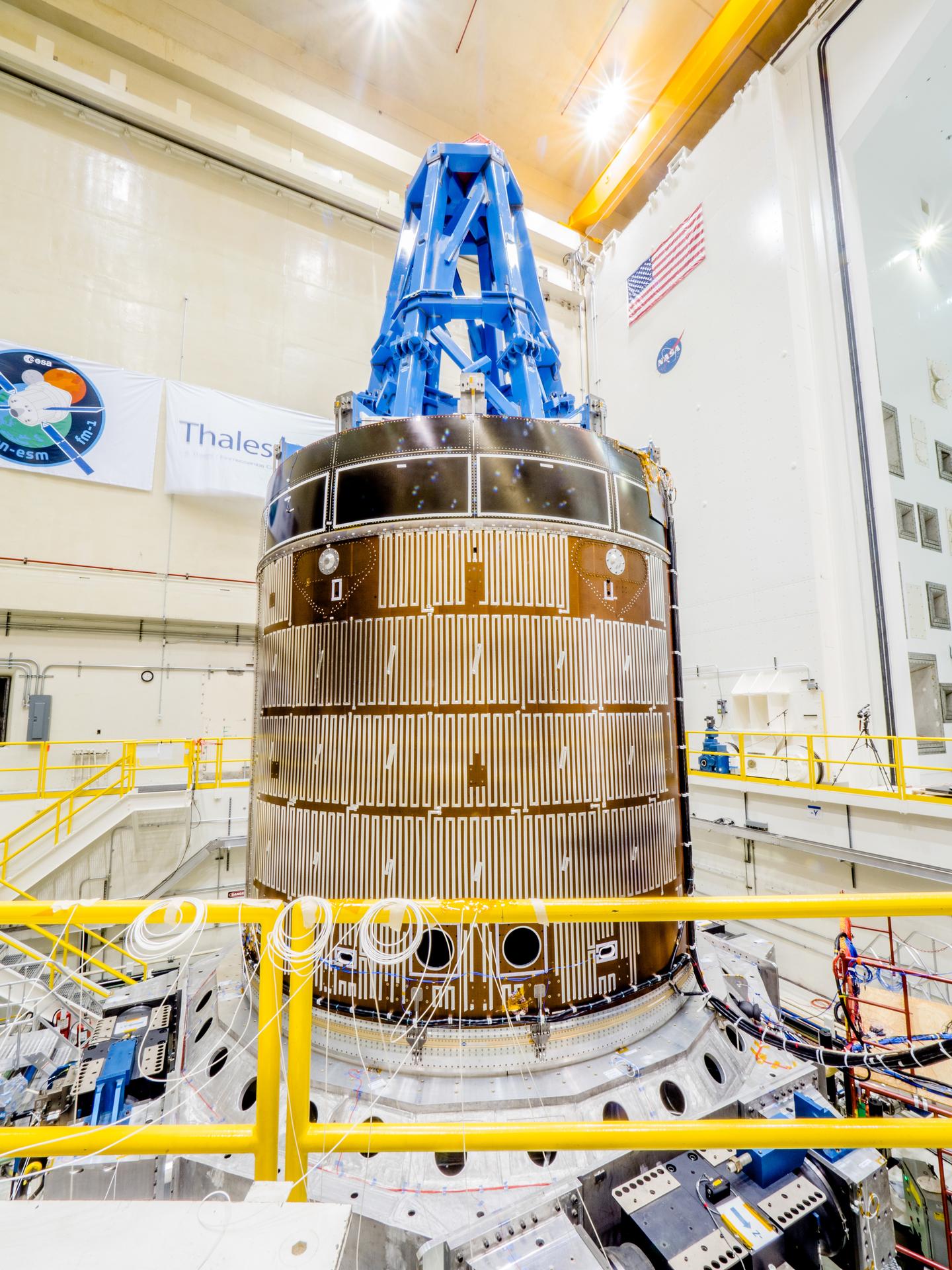

Number of sensors used to collect data on Orion’s service module as it was shaken in the Mechanical Vibration Facility at NASA’s Neil A. Armstrong Test Facility.
6,000

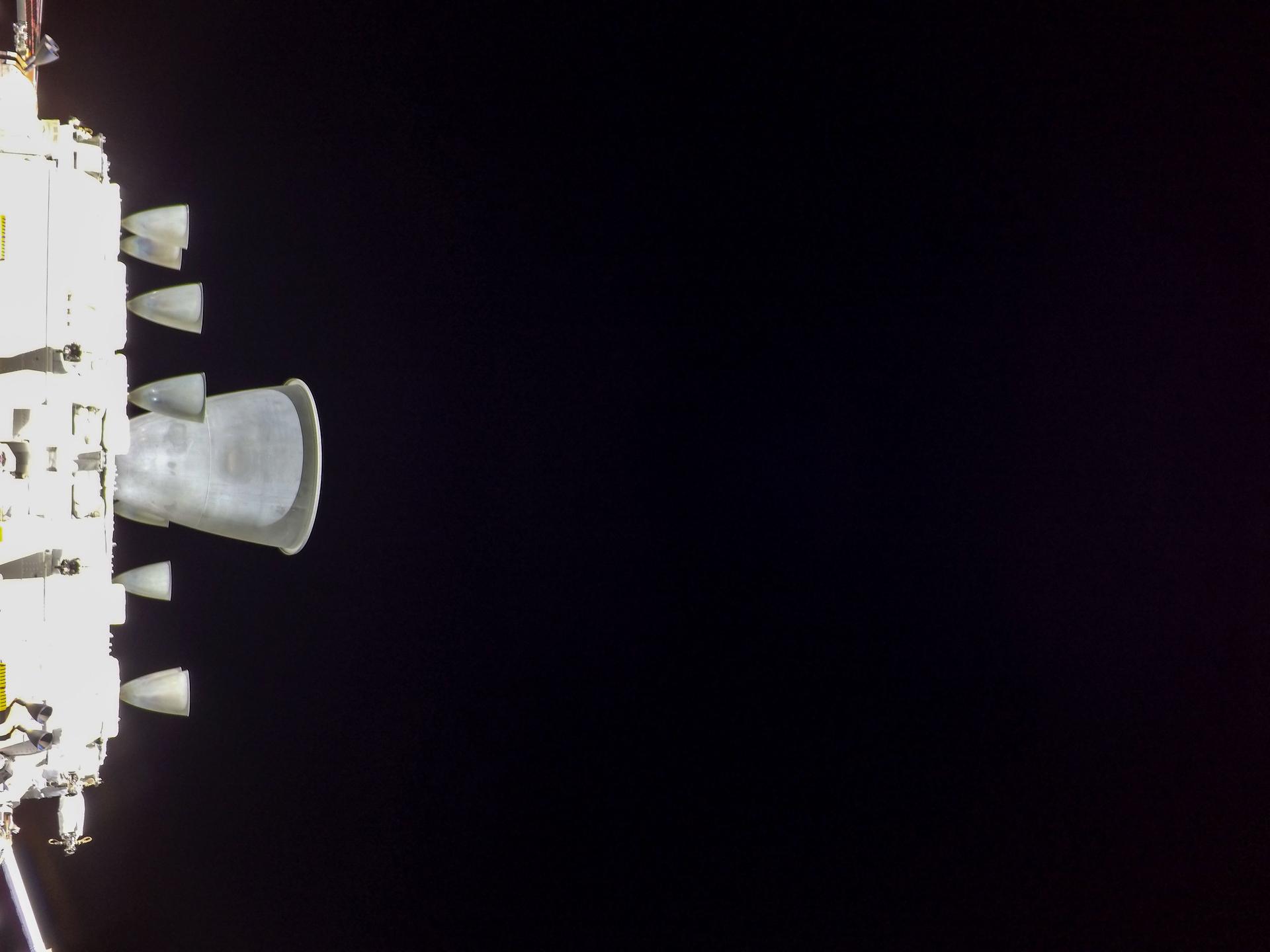

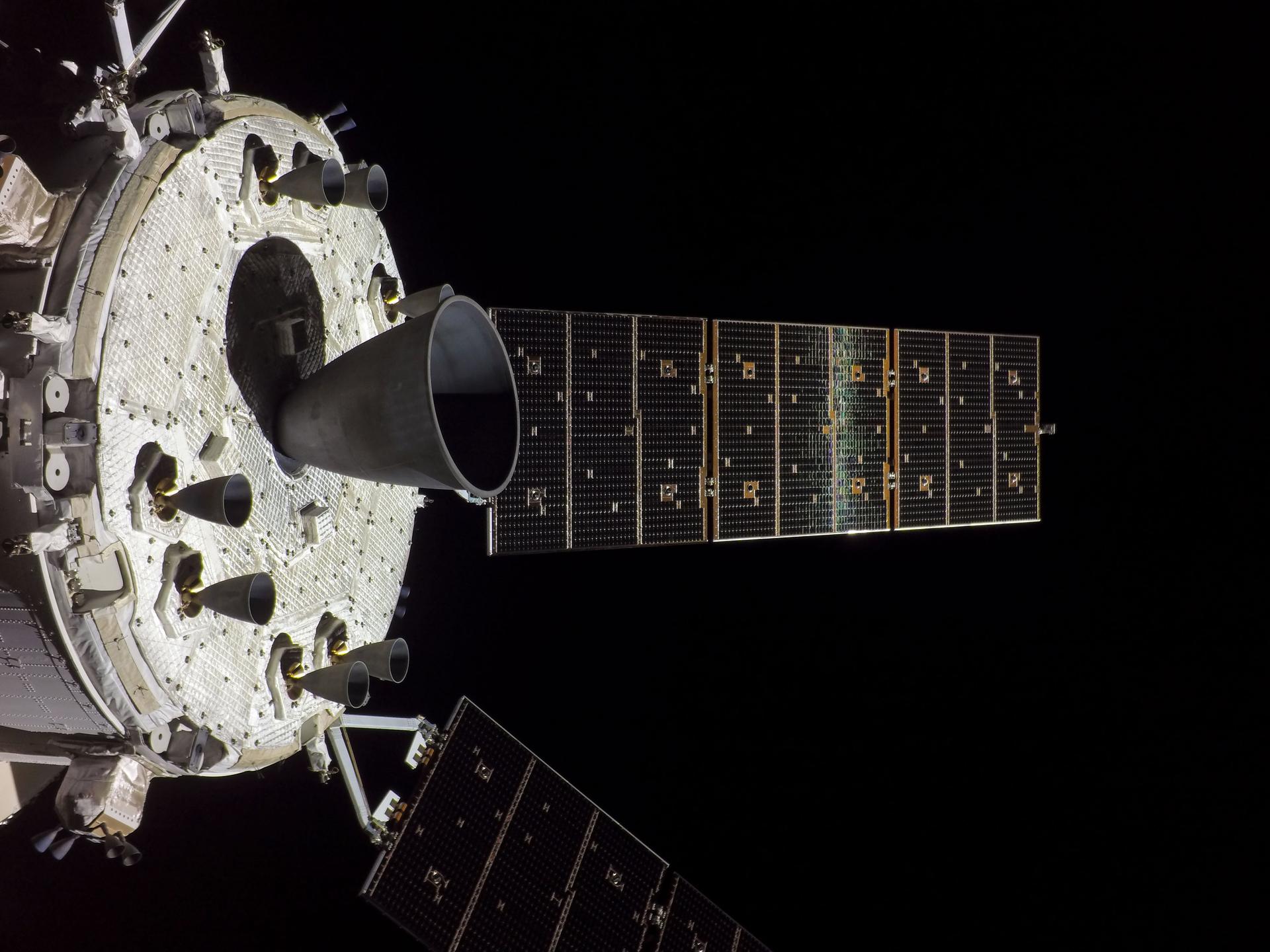

Total pounds of thrust provided by the service module’s main engine. It is also equipped to swivel from side to side as well as up and down.
15,000
Total number of solar cells found on the spacecraft’s solar arrays used to convert light into electricity.
20,000
The number of parts and components the service module is comprised of that must fit together perfectly and perform reliably.
An International Undertaking

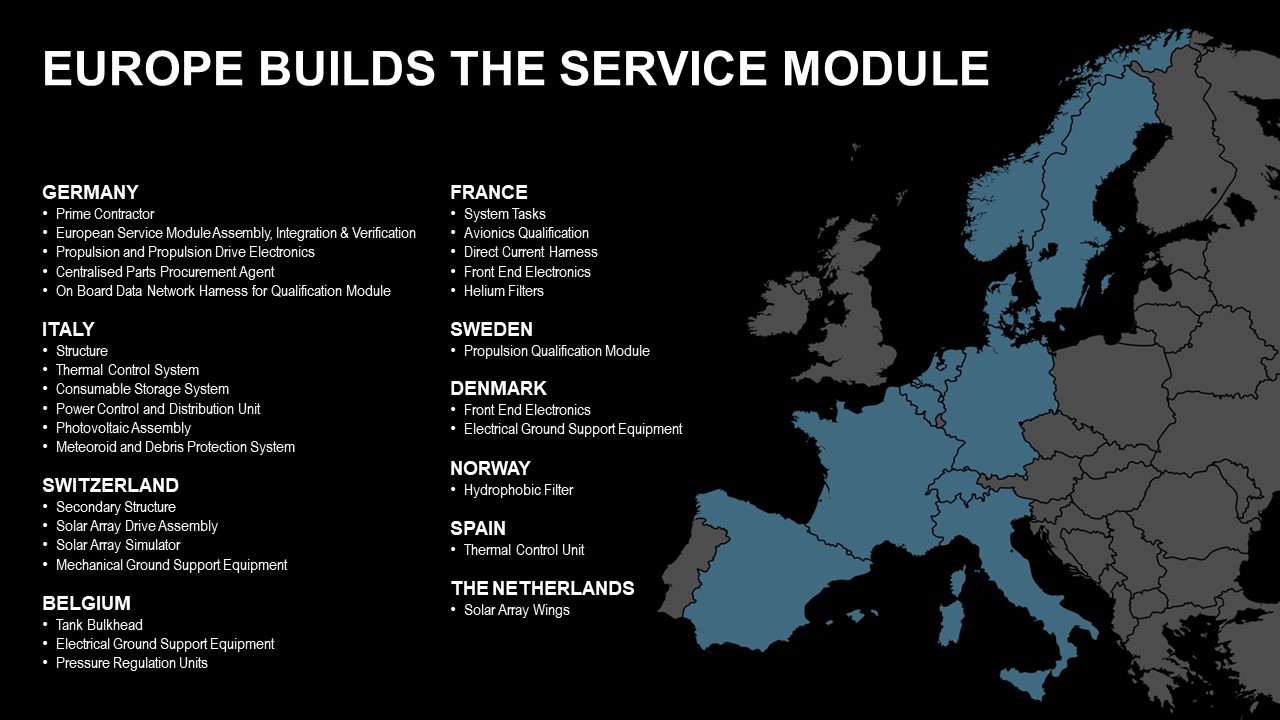

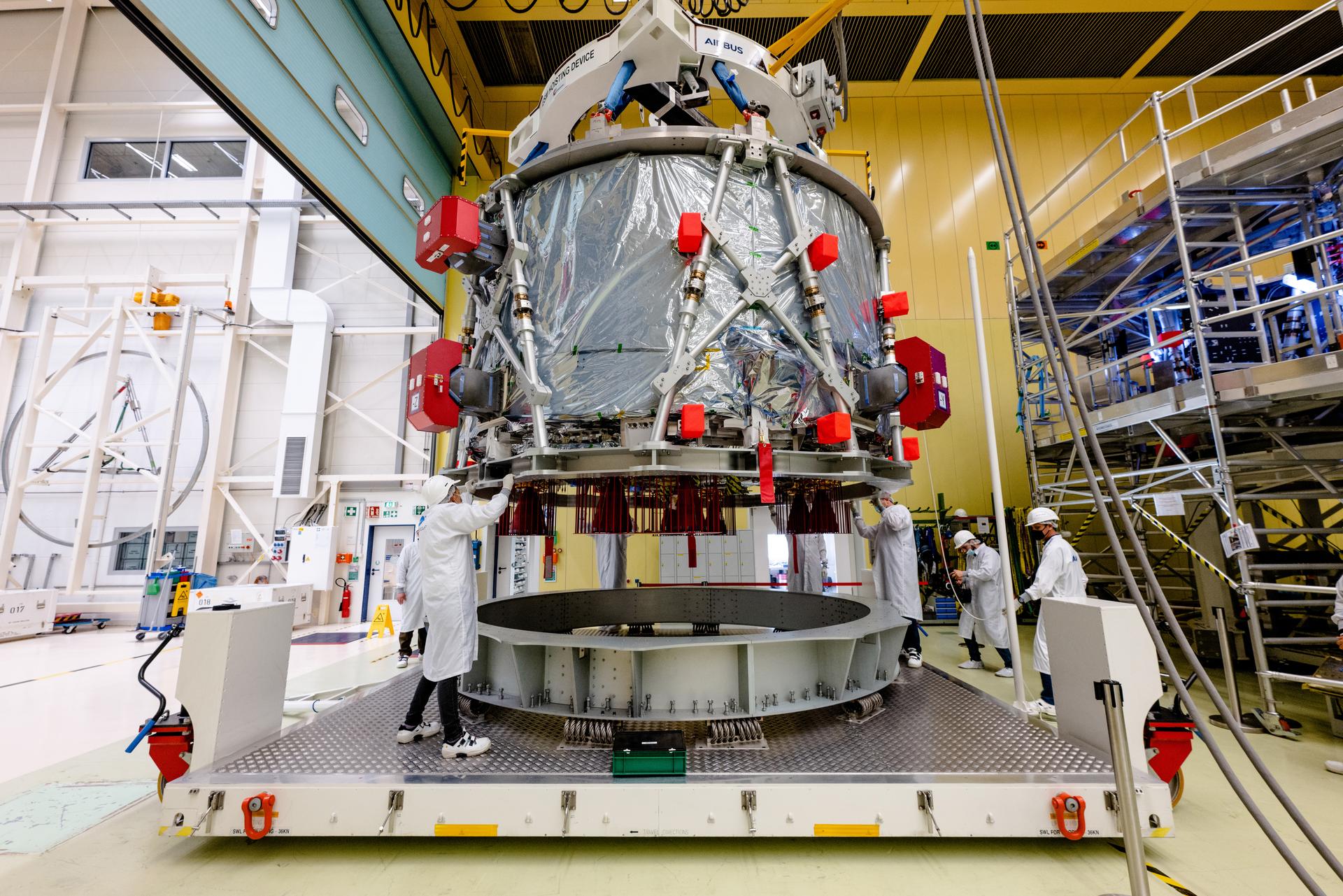

European Service Modules for NASA’s Orion spacecraft are assembled in Bremen, Germany, while suppliers all over Europe and the United States deliver components that form the chassis and supply life-support and propulsion to the Orion capsule.
Companies from 11 countries have built spacecraft-specific parts for Orion or supplied their proven space-hardware to construct the spacecraft that will fly further than any other human-rated spacecraft.
The prime contractor for the European Service Module is Airbus Space, a European multinational that has put its Bremen facility in charge of the service module program. As ESA’s direct interface, Airbus is responsible for the complete package, assembling the parts in its Bremen halls and verifying that the components work as expected. They are the centralized company that orders all parts for the European Service Module, keeps track of orders and ensures parts get shipped to the right place at the right time. The engines and electronics to drive the thrusters come from an Airbus subsidiary in Lampoldshausen, Germany, which also supplied the engines for ATV. The company Leoni, also based in Germany, is responsible for the network of cables for the module’s electronics – transmitting all the data from engine temperature to levels of oxygen in the tanks.
Service Module Fact Sheet
Learn more about Orion’s service module, the powerhouse of the spacecraft.
Learn More about Service Module Fact Sheet
Orion European Service Module
More on Orion's Service Module
Orion’s Service Module Completes Critical Design Review
At Your Service: Orion Service Module Complete

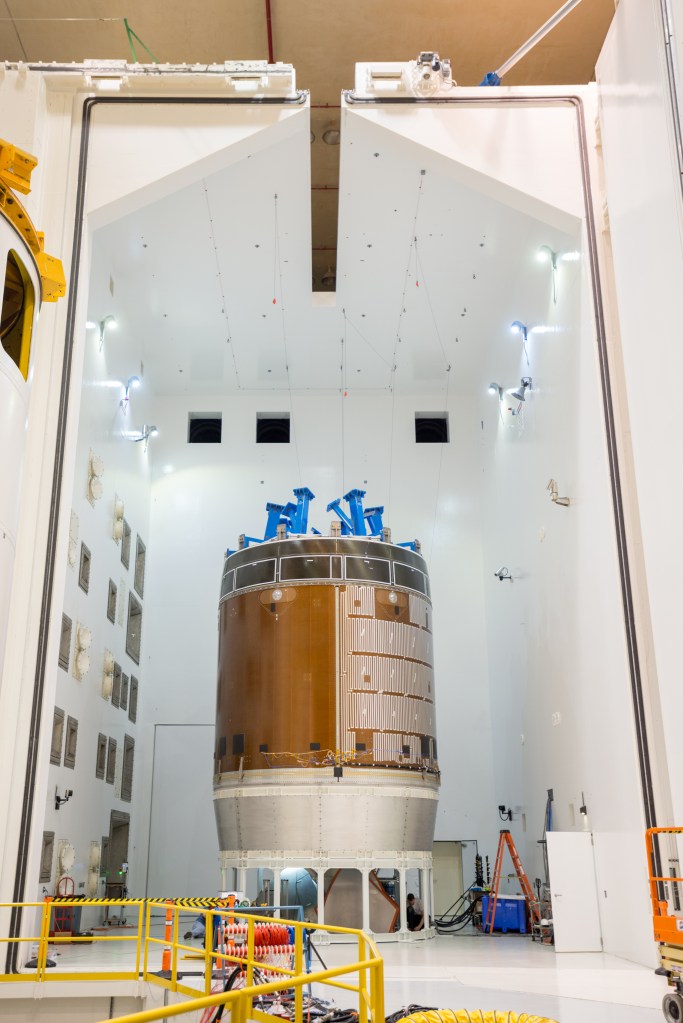

Orion Service Module Testing Sounds Off
