Report of the PRESIDENTIAL COMMISSION on the Space Shuttle Challenger Accident
Volume 3: Appendix N - NASA Photo and TV Support Team Report

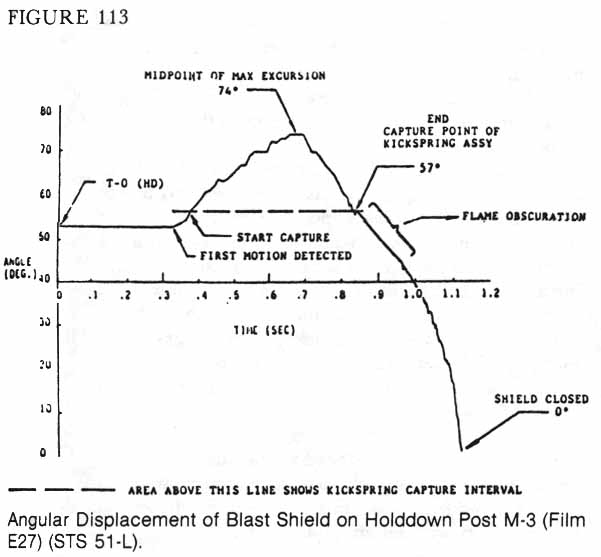

Figure 113. Angular Displacement of Blast Shield on Holddown Post M-3 (Film E27) (STS 51-L).
Back
Figure 113. Angular Displacement of Blast Shield on
Holddown Post M-3 (Film E27) (STS 51-L).
