Report of the PRESIDENTIAL COMMISSION
on the Space Shuttle Challenger Accident
Volume 2
Appendix L - NASA Accident Analysis
Team Report. [Part 1]

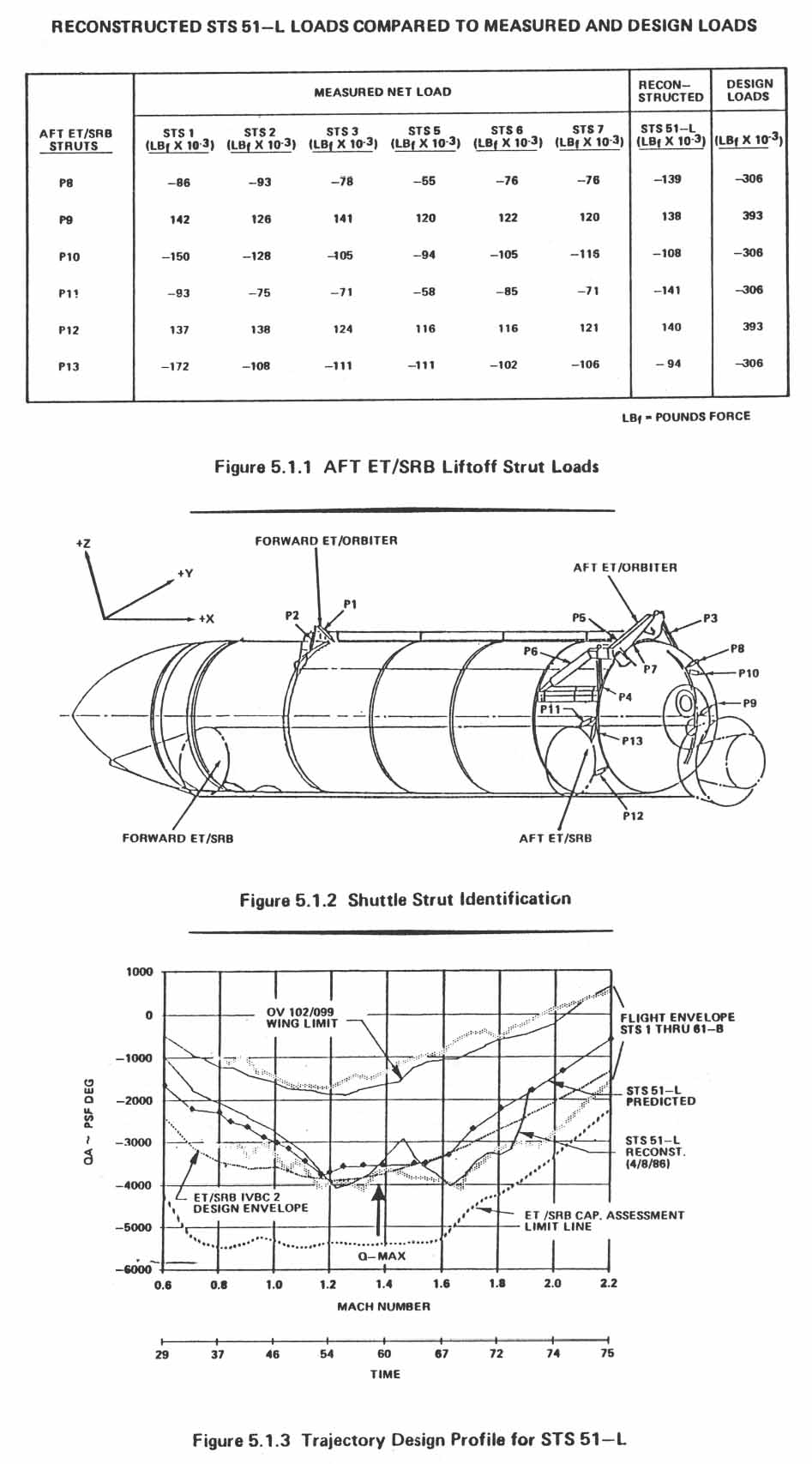

![[Top to bottom] Figure 5.1.1. AFT ET/SRB Liftoff Strut Loads; Figure 5.1.2. Shuttle Strut Identification; Figure 5.1.3. Trajectory Design Profile for STS 51-L.](https://www.nasa.gov/wp-content/uploads/static/history/rogersrep/v2l36.jpg)
[Top to bottom] Figure 5.1.1. AFT
ET/SRB Liftoff Strut Loads; Figure 5.1.2. Shuttle Strut
Identification; Figure 5.1.3. Trajectory Design Profile for STS
51-L.
