Project Apollo Drawings and Technical Diagrams

cut-away drawing of Apollo Lunar Landing Spacecraft configuration

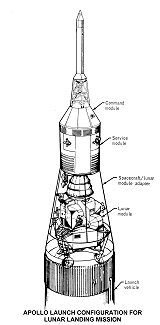

Apollo Spacecraft Launch Configuration
from Apollo Program Summary Report
(April 1975)

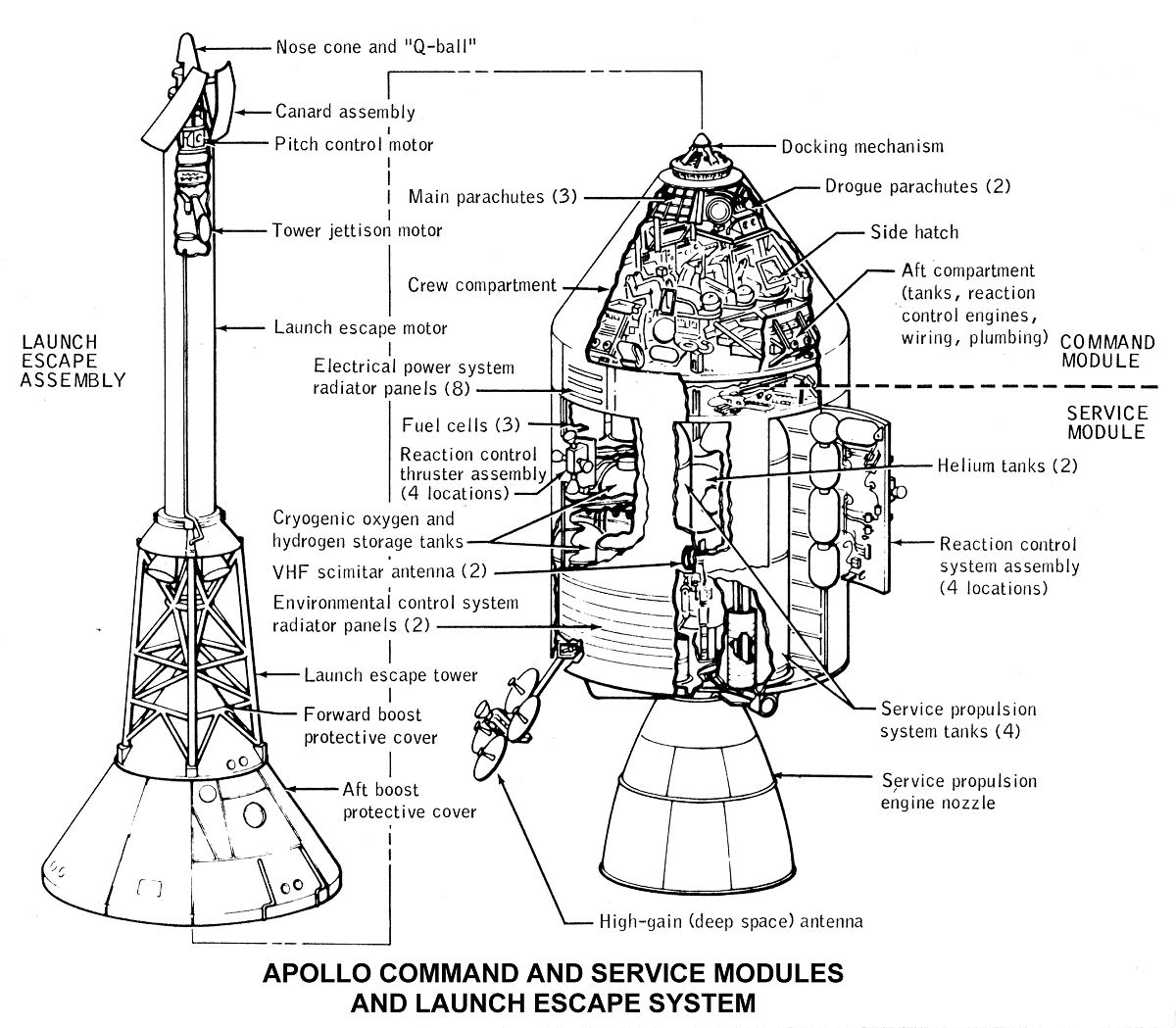

cut-away drawing of Apollo Command and Service Modules and Launch Escape System

Apollo Command and Service Modules
and Launch Escape System
from Apollo Program Summary Report
(April 1975)

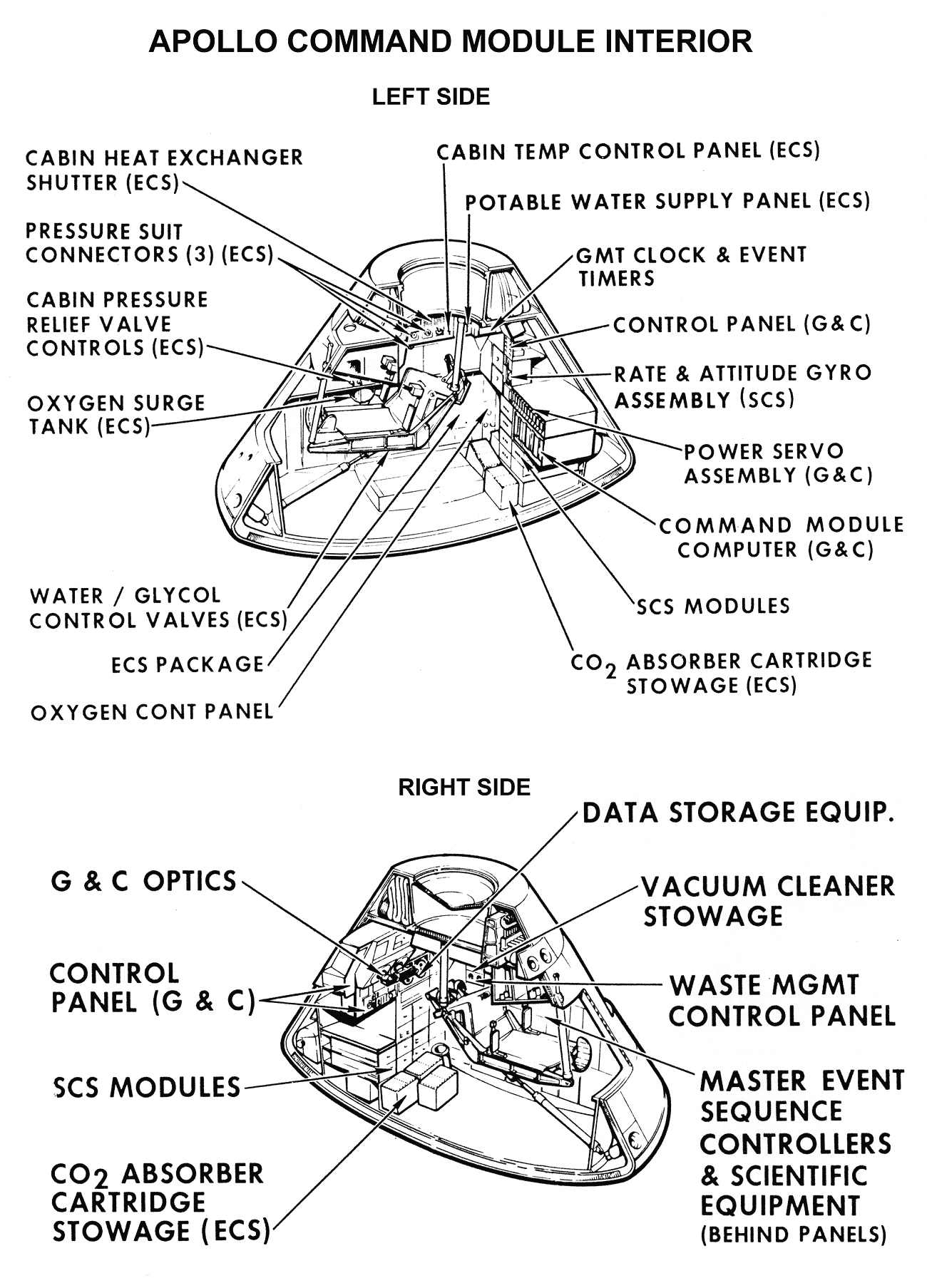

cross-sectional drawing of the Apollo Command Module

Command Module Interior
from Apollo Training Manual
"Apollo Spacecraft & Systems Familiarization"
(March 13, 1968)

Command Module Interior
from Apollo Training Manual
"Apollo Spacecraft & Systems Familiarization"
(March 13, 1968)

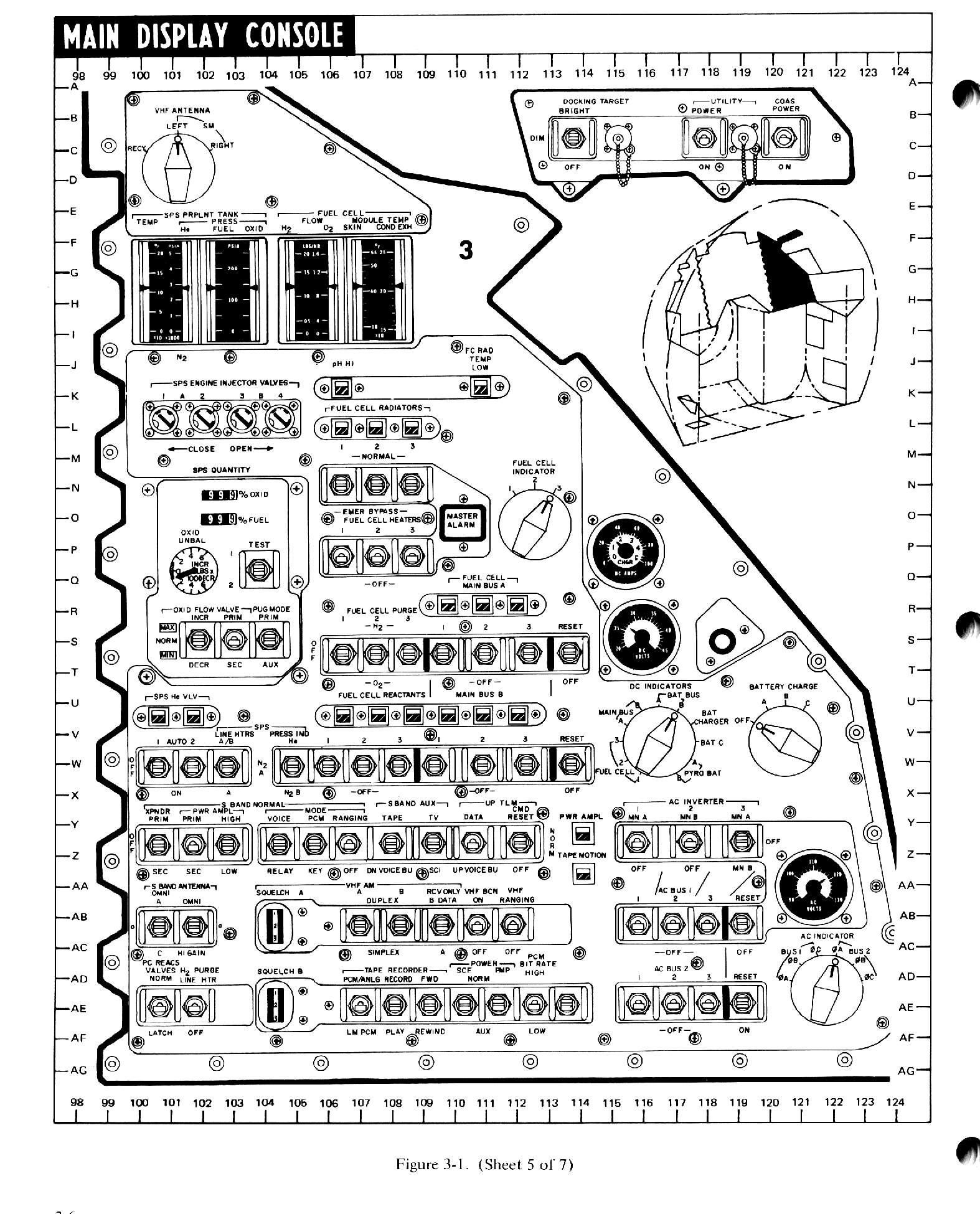

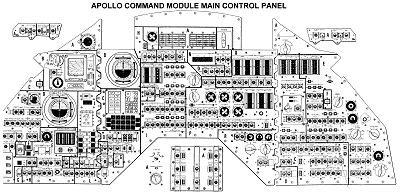

Command Module Main Control Panel from Apollo Operations Handbook Block II Spacecraft (October 15, 1969)

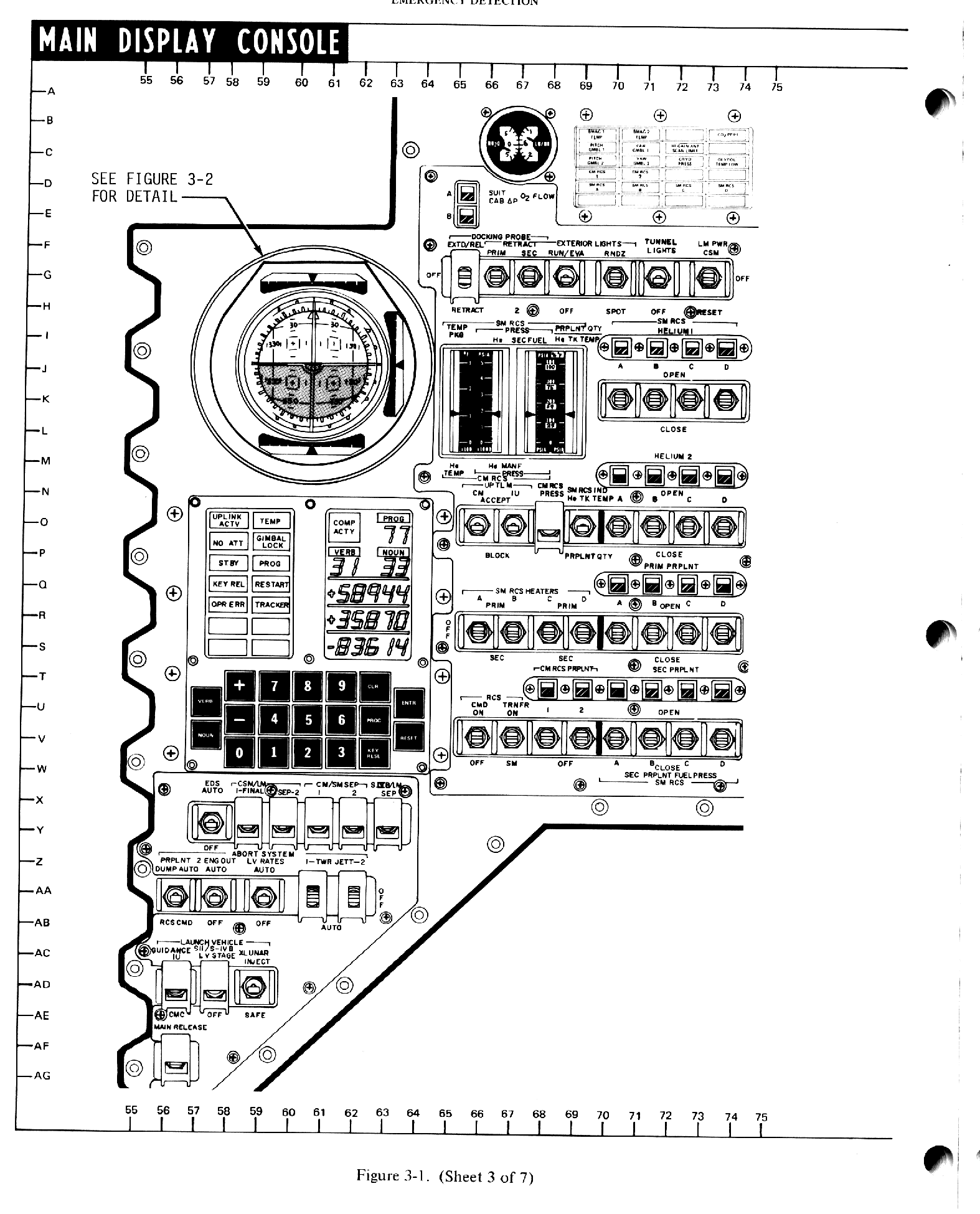

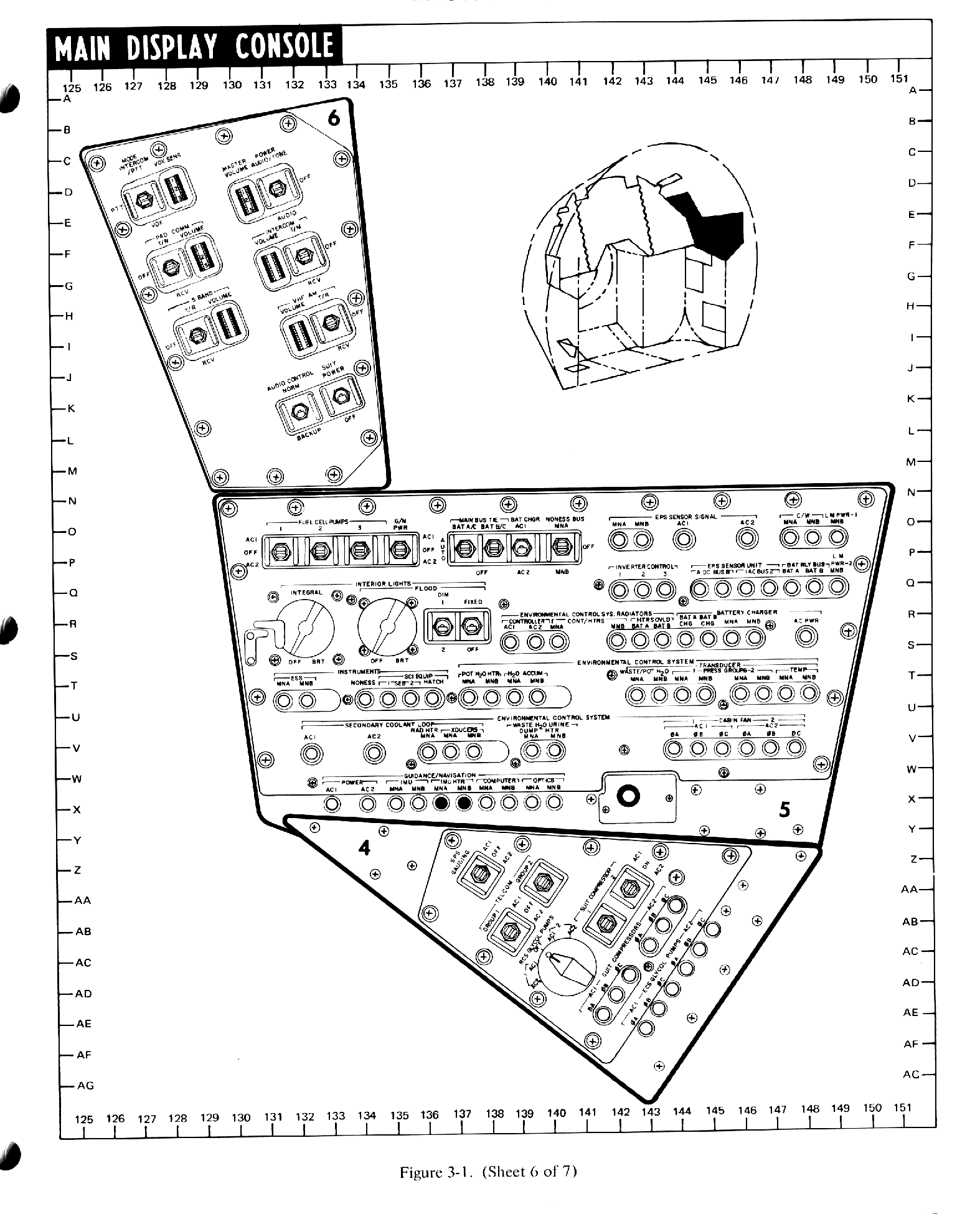

Detailed, sectional scans of the above panel are available via the links below: Left side panel - Left section - Middle left section - Middle right section - Right section - Right side panel

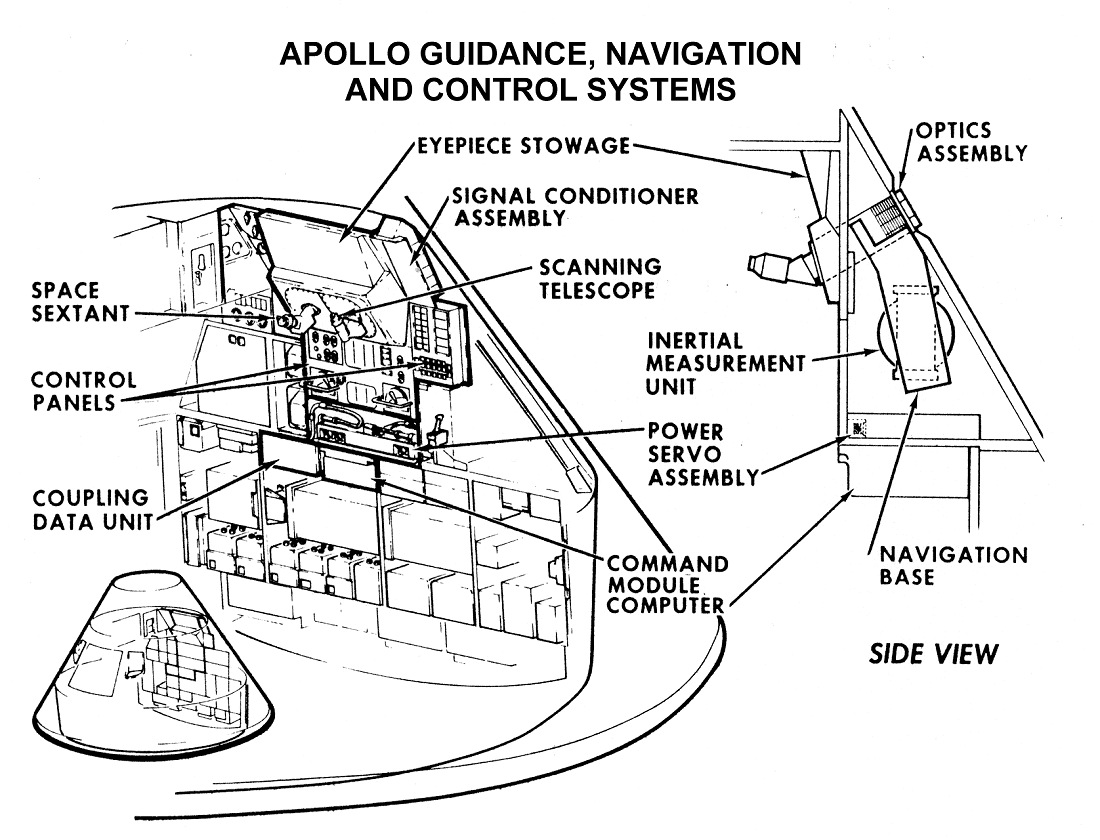

diagram of guidance and, navigation and control systems

Guidance Navigation and Control Systems
from Apollo Training Manual
"Apollo Spacecraft & Systems Familiarization"
(March 13, 1968)

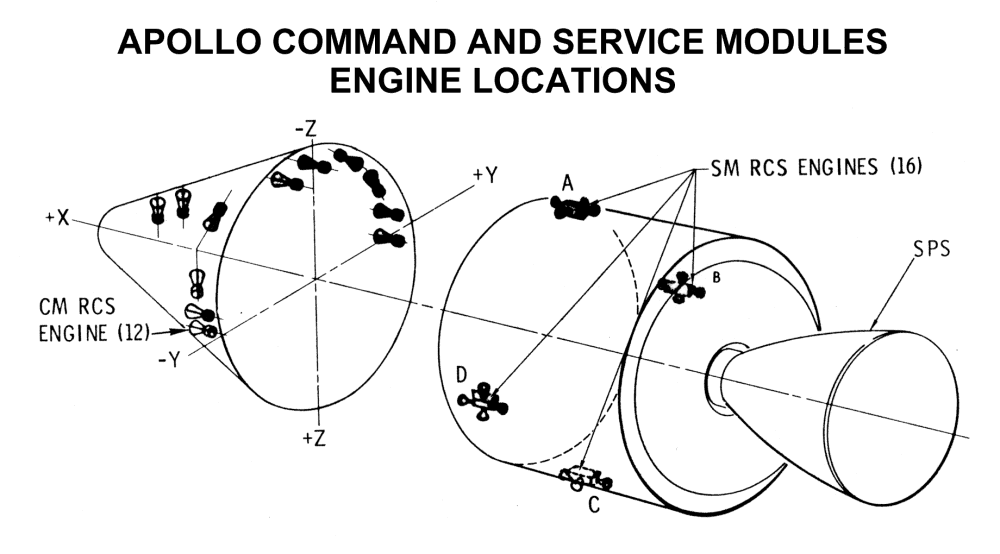

diagram of command and service moules and engine locations

Command and Service Module
Engine Locations
from Apollo Training Manual
"Apollo Spacecraft & Systems Familiarization"
(March 13, 1968)

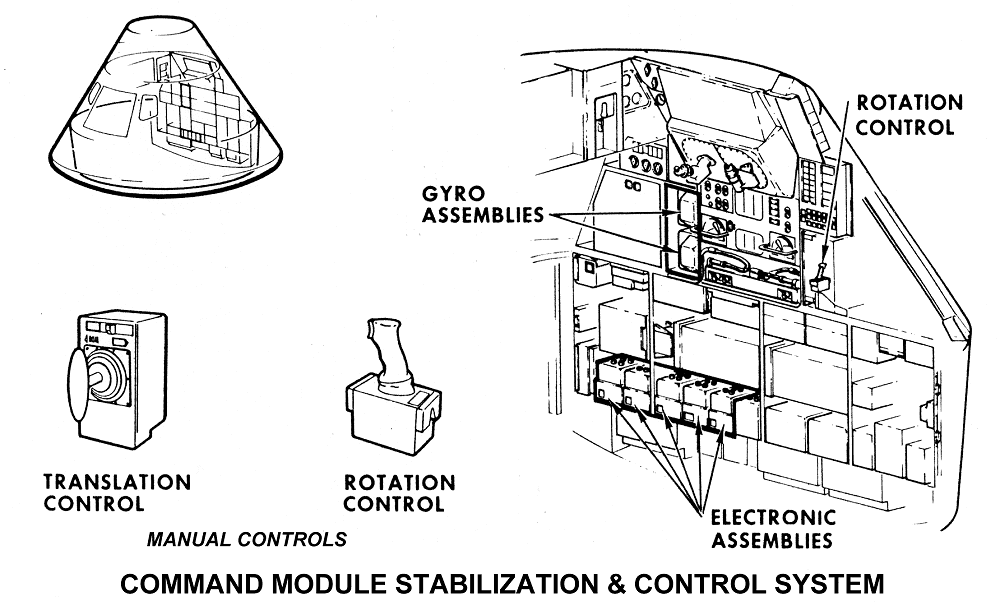

diagram of CM stabilization and control systems

Stabilization & Control System
from Apollo Training Manual
"Apollo Spacecraft & Systems Familiarization"
(March 13, 1968)

placement illustration of landing vehicle and its protective panels on the launch vehicle

Apollo Spacecraft/LM Adapter
from Apollo Training Manual
"Apollo Spacecraft & Systems Familiarization"
(March 13, 1968)

scale drawing of Apollo CSM , LM and astronauts

Command/Service Module /
Lunar Module Comparison
from Apollo Training Manual
"Apollo Spacecraft & Systems Familiarization"
(March 13, 1968)

component identification drawing of the lunar landing module

Lunar Module Exterior
from Apollo Program Press Information Notebook
(1972)

drawing of landing module configuration for lunar landing

Lunar Module Landing Configuration
from Apollo Program Summary Report
(April 1975)

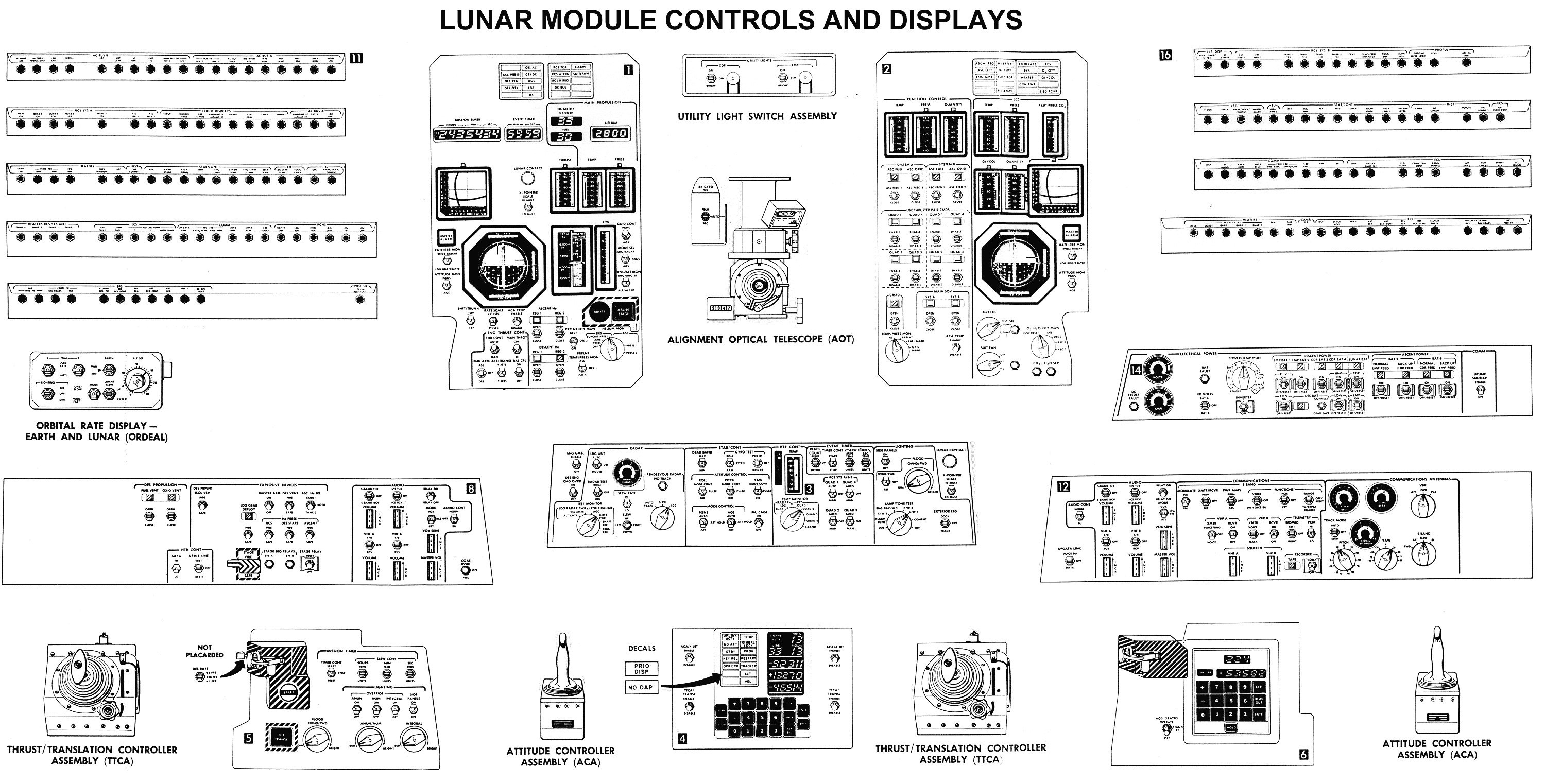

illustraion of Lunar Module's Display and control console

Lunar Module Controls and Displays
from Apollo Spacecraft News Reference

component identification drawing of Lunar Module's ascent Stage

Lunar Module Ascent Stage
from Apollo Program Press Information Notebook
(1972)

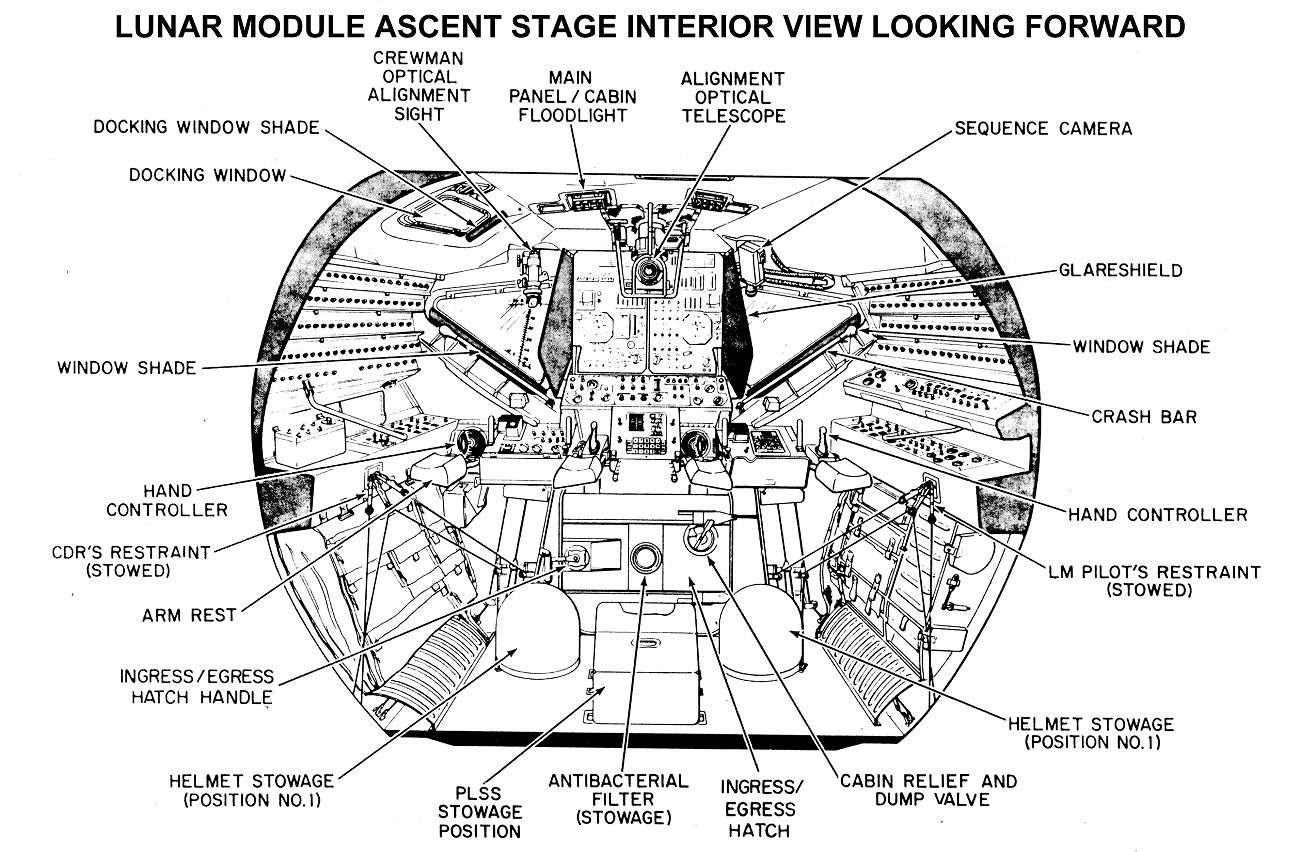

cross-sectional drawing of the LM ascent stage looking foward

Lunar Module Ascent Stage
Interior Looking Forward
from Apollo Program Press Information Notebook
(1972)

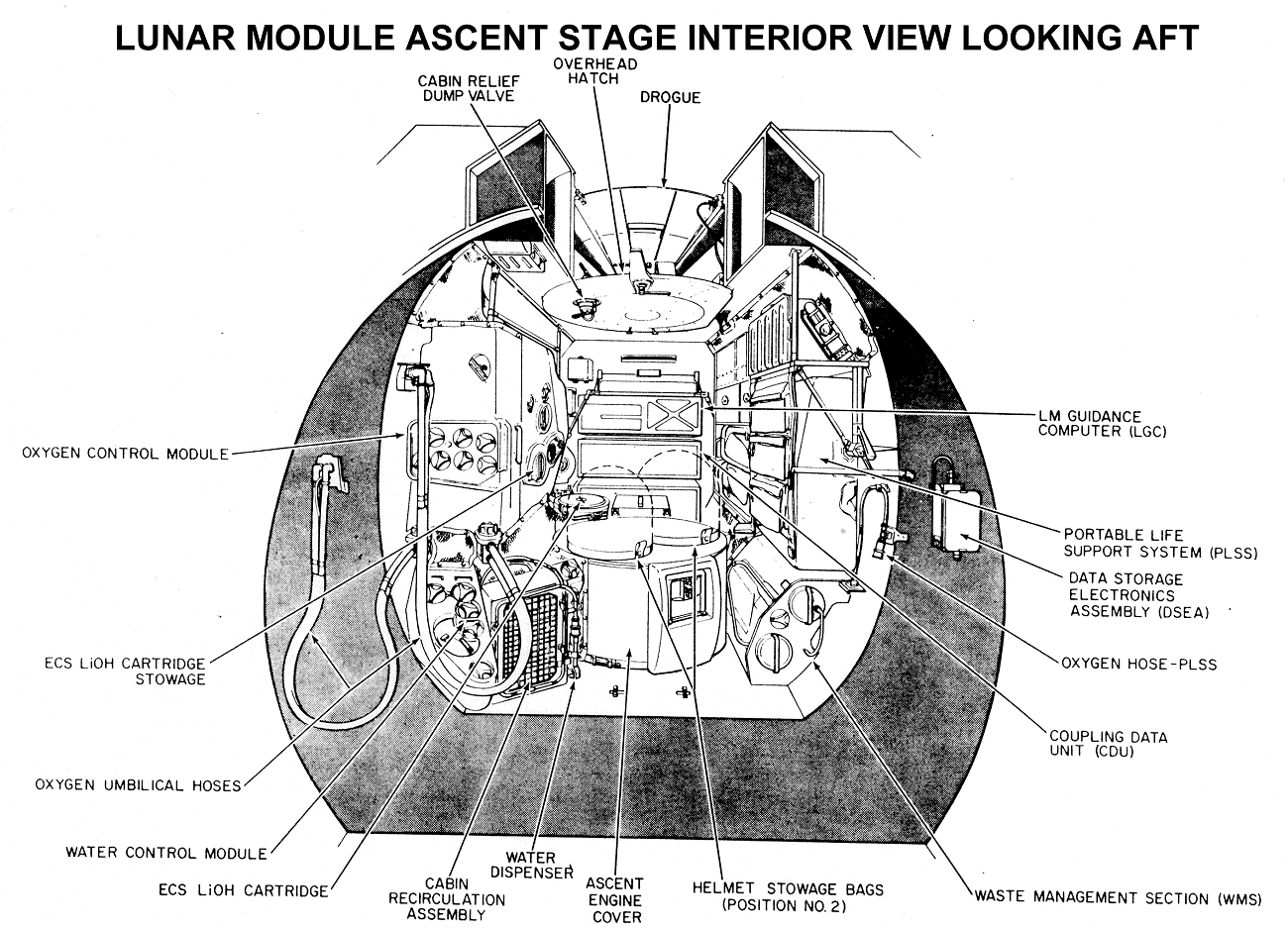

cross-sectional drawing of the LM ascent stage looking aft

Lunar Module Ascent Stage
Interior Looking Aft
from Apollo Program Press Information Notebook
(1972)

cut-away drawing of the LM descent stage components

Lunar Module Descent Stage
from Apollo Program Press Information Notebook
(1972)
