Apollo 16 Cuff Checklists

Apollo 16 Cuff Checklists

Apollo 16 CDR EVA-1 Cuff Checklist

These pages are available in the Apollo 16 Final Lunar Surface Procedures.

Apollo 16 LMP EVA-1 Cuff Checklist

After the mission, Charlie Duke donated his EVA-1 Cuff Checklist to the South Carolina State Museum in Columbia. Ron Shelton of the museum staff has graciously provided photographs of the checklist for inclusion in the Journal. Those photos were scanned by Dave Hardin.

Mission Patch ( 96k )

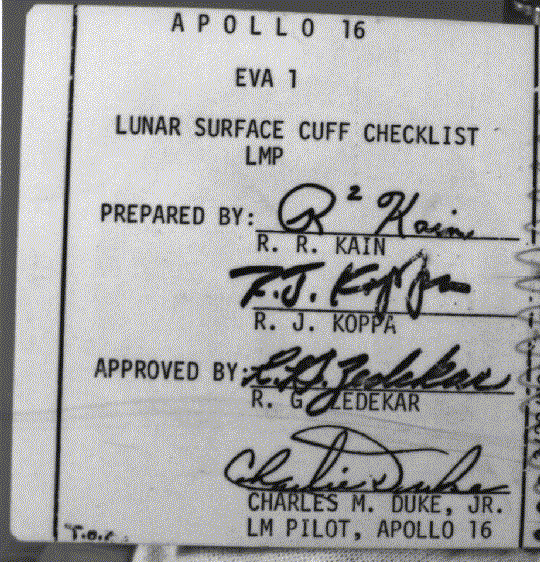

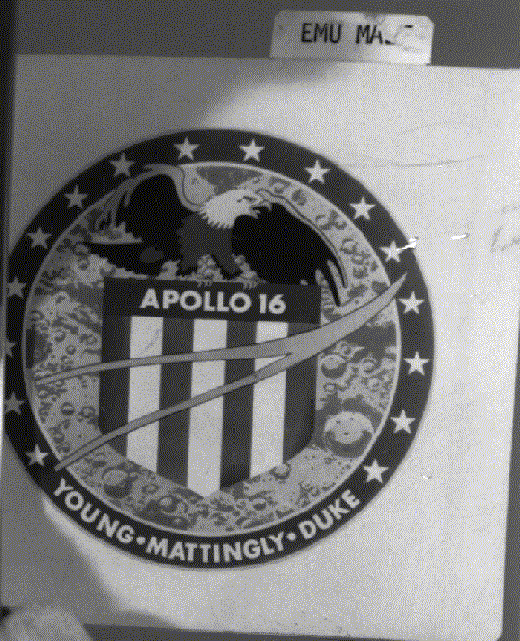

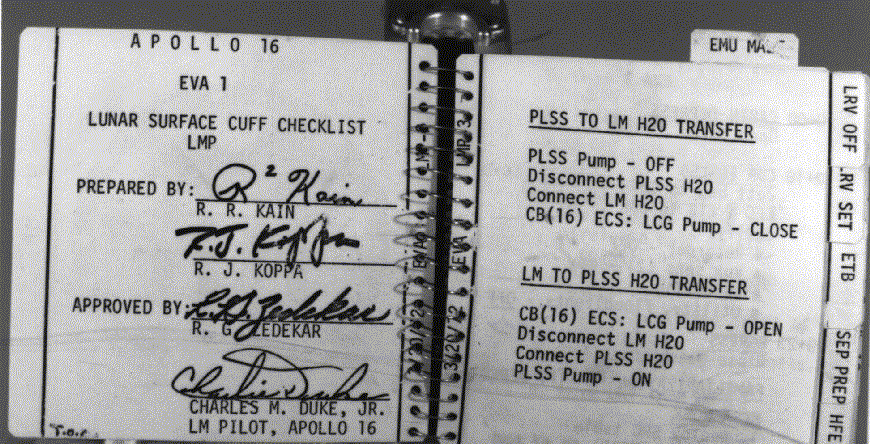

Signature Page ( 86k )

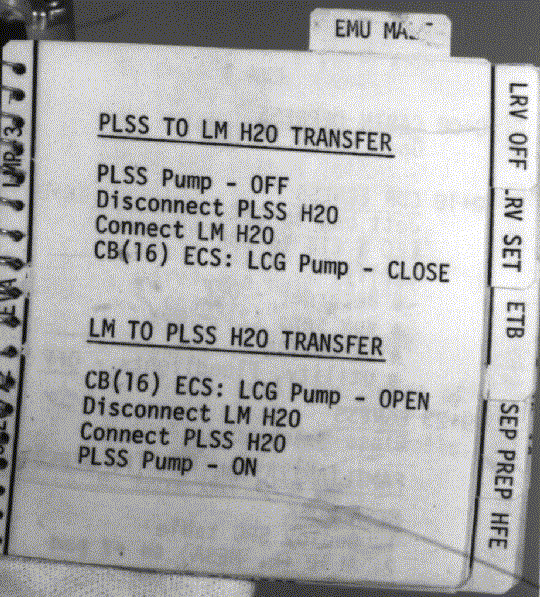

LMP-03: PLSS to LM H2O Transfer ( 93k )

LMP-04: Cabin Depress and Crew Egress ( 84k )

LMP-05: Off-load LRV ( 95k )

LMP-06: Set-up LRV ( 87k )

LMP-07: Inspect LM and Load LRV ( 90k )

LMP-08: LRV Load (continued) ( 83k )

LMP-09: ETB Unstow ( 93k )

LMP-10: SRC-1, Drill, LM Ingress ( 86k )

LMP-11: Flag Deploy and ALSEP Off-load ( 93k )

LMP-12: ALSEP Deployment Sketch ( 83k )

LMP-13: ALSEP Placement and HFE Subpallet ( 101k )

LMP-14: ALSEP Deployment Sketch ( 81k )

LMP-15: Deploy HFE ( 96k )

LMP-16: Emplace HFE Probe No. 1 ( 80k )

LMP-17: Deploy HFE Electronics ( 98k )

LMP-18: ALSEP Photoplan ( 80k )

LMP-19: Drill Core Sample ( 90k )

LMP-20: Core Extraction and GeoPrep ( 92k )

LMP-21: (blank) ( 81k )

LMP-22: Station 1 Sketch ( 83k )

LMP-23: Station 1 Tasks ( 98k )

LMP-24: Station 2 Sketch ( 78k )

LMP-25: Station 2 Tasks ( 93k )

LMP-26: Grand Prix Sketch ( 84k )

LMP-27: Grand Prix Procedures and Return to LM ( 90k )

LMP-28: (blank) ( 72k )

LMP-29: Close-out ( 99k )

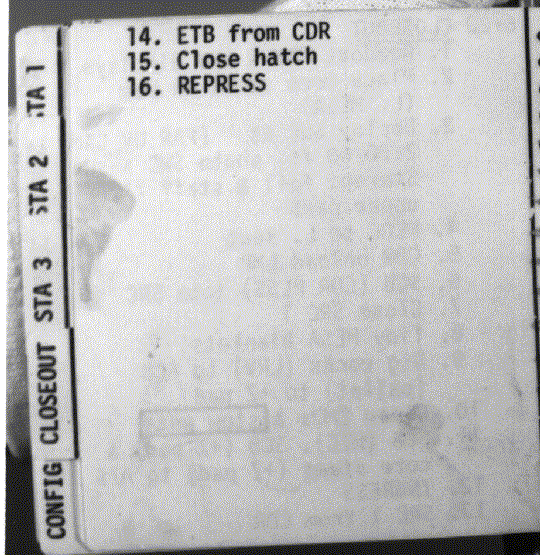

LMP-30: Repress ( 77k )

LMP-31: (blank) ( 86k )

LMP-32: Fillet Samples ( 96k )

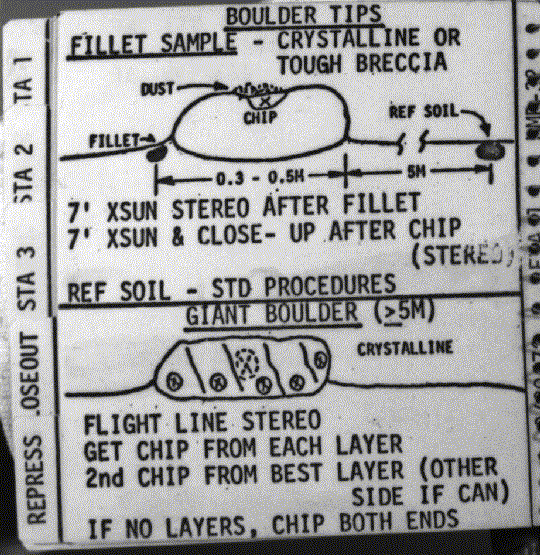

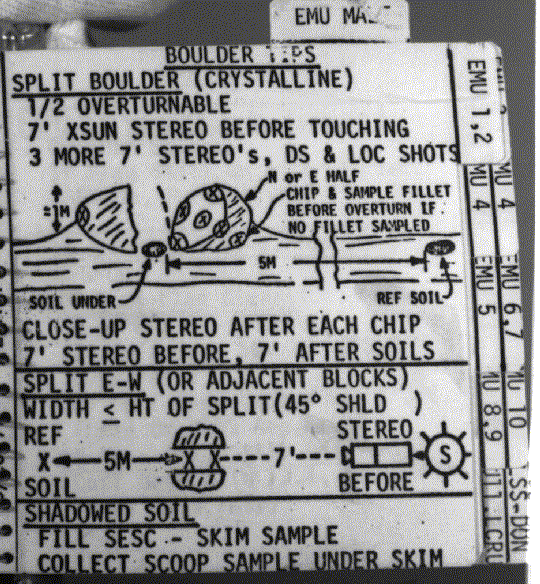

LMP-33: Split Boulder Sampling ( 107k )

LMP-34: (Blank) ( 84k )

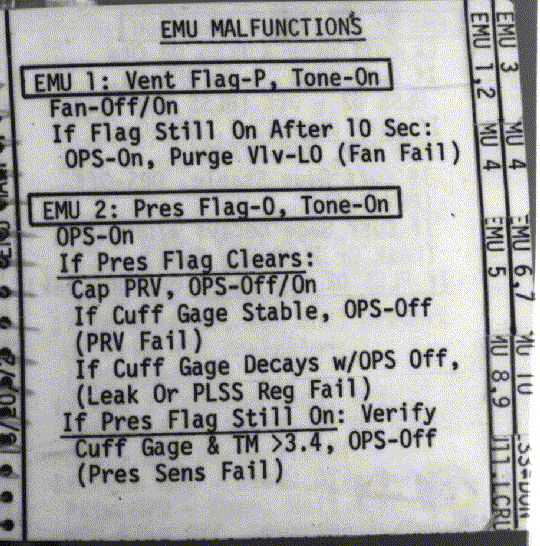

EMU Malfunction Procedures 1 & 2 ( 95k )

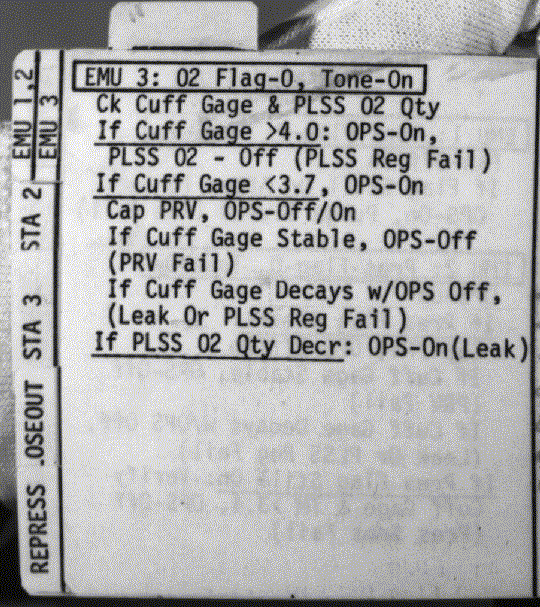

EMU Malfunction Procedure 3 ( 96k )

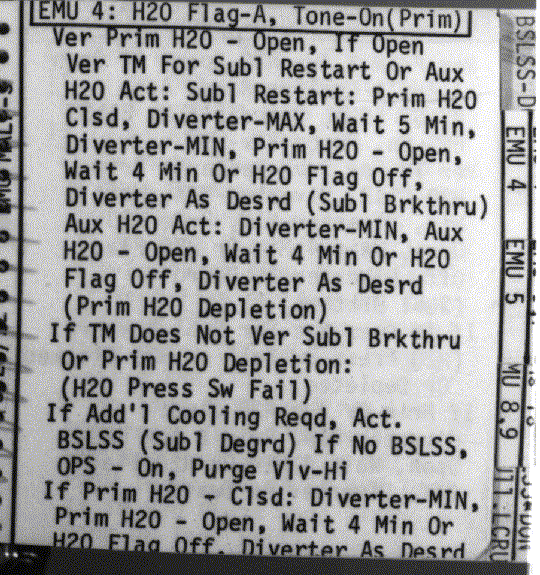

EMU Malfunction Procedure 4 ( 105k )

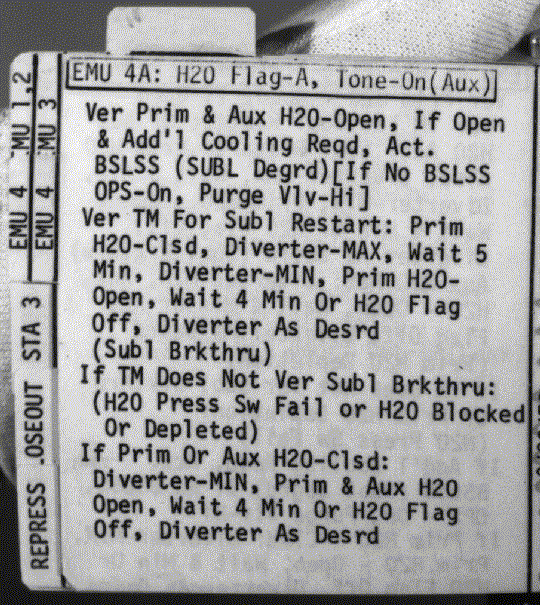

EMU Malfunction Procedure 4a ( 101k )

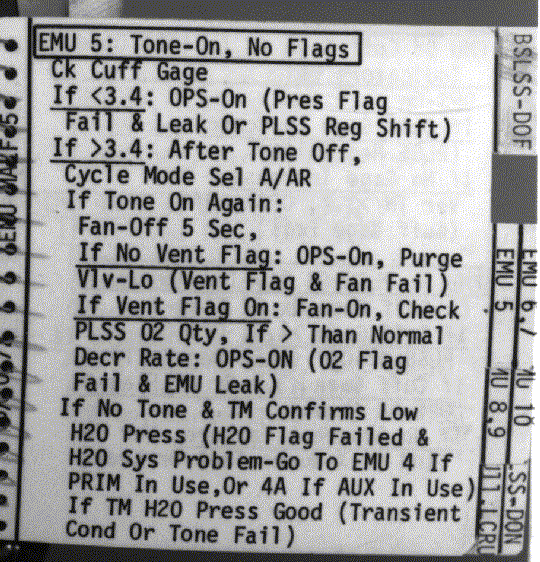

EMU Malfunction Procedure 5 ( 99k )

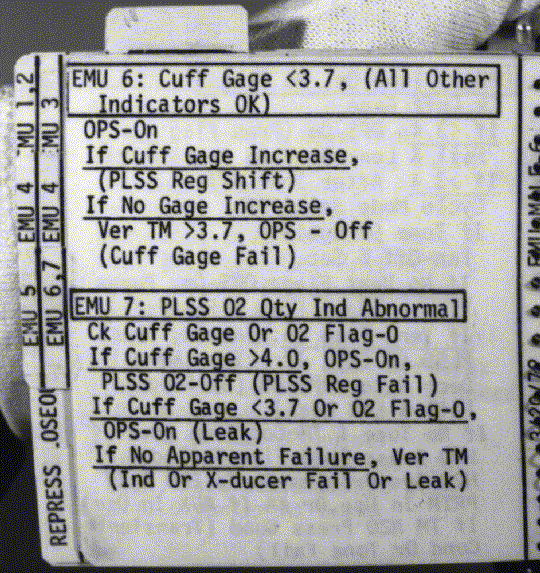

EMU Malfunction Procedures 6 & 7 ( 93k )

EMU Malfunction Procedures 8 & 9 ( 92k )

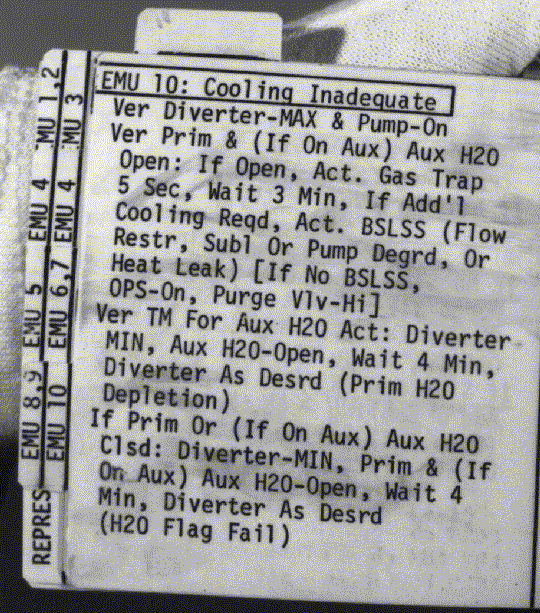

EMU Malfunction Procedure 10 ( 99k )

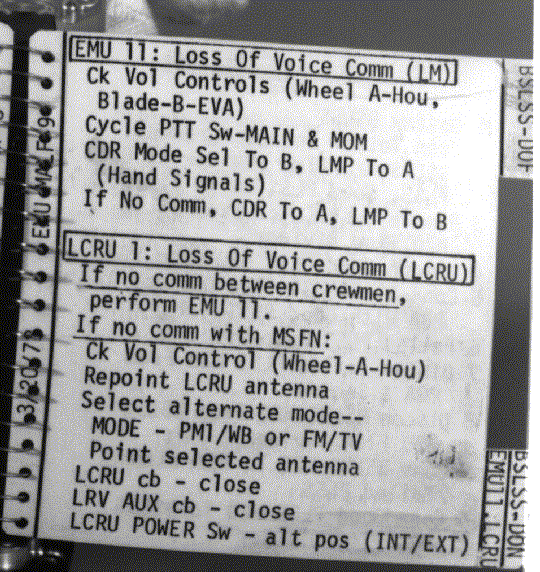

EMU Malfunction Procedure 11 and LCRU Procedure 1 ( 98k )

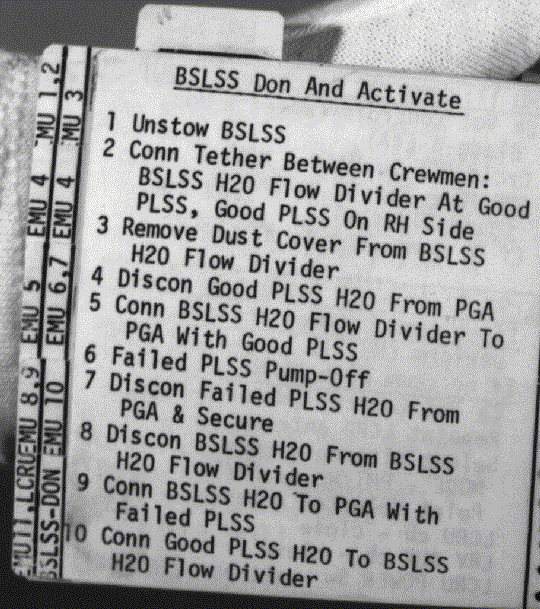

BSLSS Donning and Activation ( 98k )

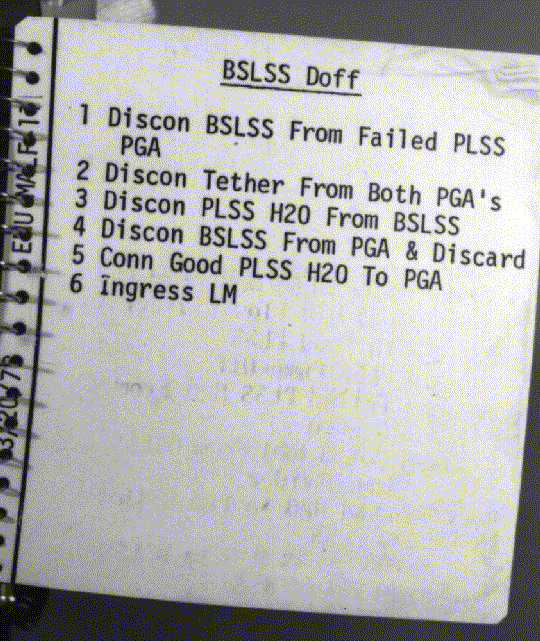

BSLSS Doffing ( 96k )

Cuff Checklist Strap ( 66k )

Cuff Checklist Spiral Binding ( 116k )

Apollo 16 CDR EVA-2/3 Cuff Checklist

The checklist was photographed by Ulrich Lotzmann, who writes, "The images were taken on July 28th, 2004 at the office of Amanda Young, Museum Specialist/Spacesuits and Astronaut Equipment, Space History Division at the National Air and Space Museum in Washington DC. I saw the checklist sitting on a shelf next to Neil Armstrong's bio-isolation garment - and I said to myself: 'Oh, what a neat checklist-Let's have a look'. When I realized that it was John Young's checklist I asked Amanda if I could take photos of each page and this wonderful lady agreed. Bill Ayrey assisted me. So please give credit not only to me but also to Bill Ayrey and Amanda Young."

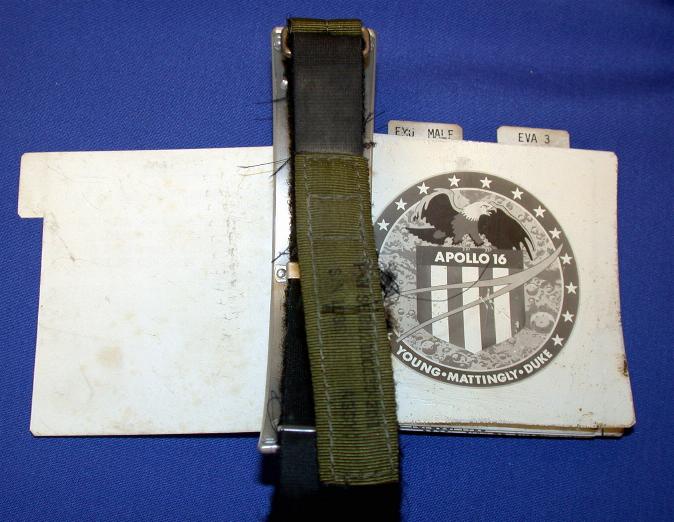

CDR -cover: Cover and arm strap ( 57k )

CDR-02/03: Signature page/PLSS/LM H2O transfer ( 88k )

CDR-04/05: 0+00 Depress, Egress, UV Cam., TV, Trav. Loadup, PLSS Loadup ( 64k )

CDR-06/CDR/LMP-07: 0+40 PLSS Loadup, UV Camera, LRV Prep, Cartoon ( 68k )

CDR/LMP-08, CDR/LMP-09: Station 4 ( 82k )

CDR/LMP-10, CDR/LMP-11: Station 5, Station 6 ( 55k )

CDR/LMP-12, CDR/LMP-13: Station 7 ( 66k )

CDR/LMP-14, CDR/LMP-15: Station 8 ( 70k )

CDR/LMP-16, CDR/LMP-17: Station 8 (cont.), Station 9 ( 71k )

CDR/LMP-18, CDR/LMP-19: Station 10 ( 62k )

CDR/LMP-20, CDR-21: LRV Powerdown, UV Camera, Unload PLSS, Pack ETB ( 59k )

CDR-22, CDR-23: LRV/LCRU Config., Transfer, UV Camera, Ingress ( 68k )

CDR-24, CDR-25: Boulder Tips ( 94k )

CDR-26, CDR-27: PLSS/LM H2O Transfer, 0+00 Egress, UV Camera, LCRU Powerup ( 73k )

CDR-28, CDR-29: 0+26 TV, Trav. Loadup, PLSS Loadup, ( 71k )

CDR-30, CDR-31: 0+38 UV Camera, LRV Prep ( 52k )

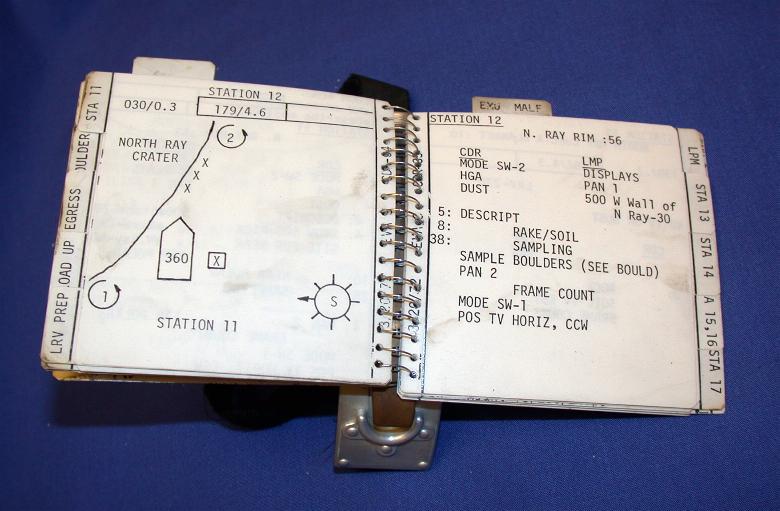

CDR-32, CDR-33: Station 11 ( 74k )

CDR-34, CDR-35: Station 12 ( 60k )

CDR-36, CDR-37: Station 13 ( 49k )

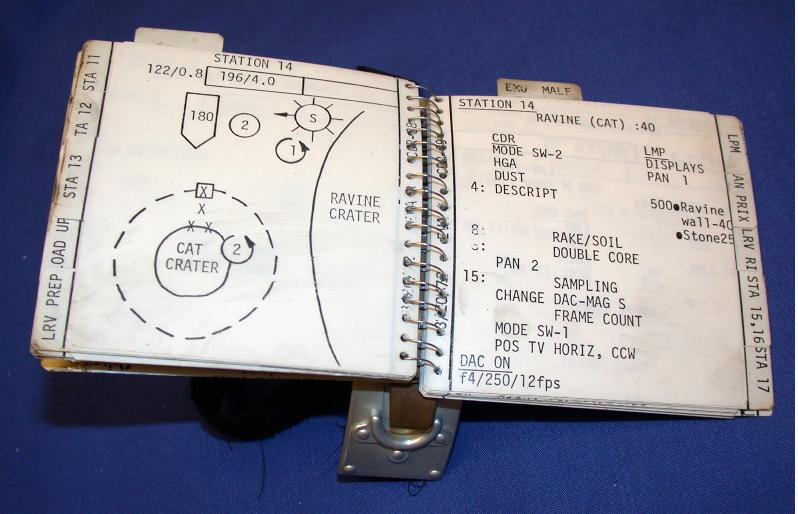

CDR-38, CDR-39: Station 14 ( 67k )

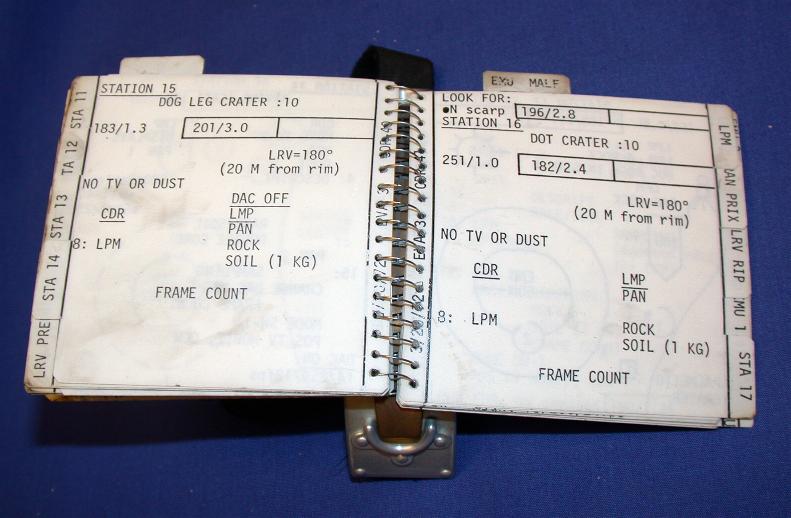

CDR-40, CDR-41: Station 15, Station 16 ( 59k )

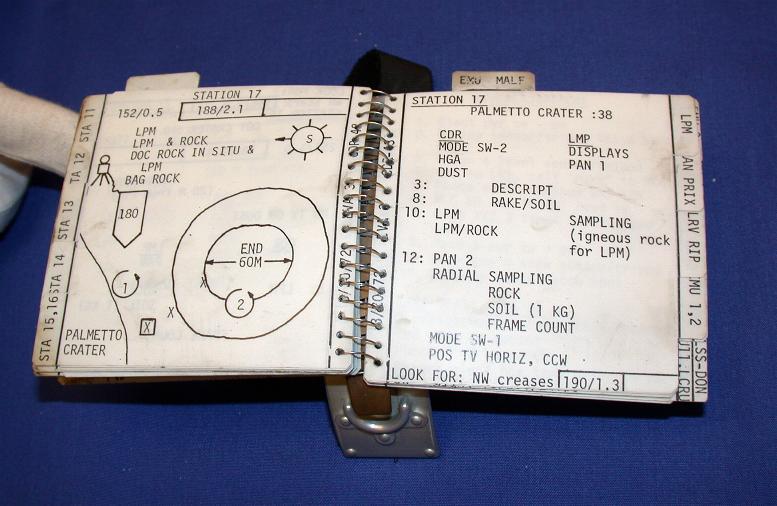

CDR-42, CDR-43: Station 17 ( 65k )

CDR-44, CDR-45: LPM Measurements ( 68k )

CDR-46, CDR-47: 6+10 LRV Config., UV Camera, Unload PLSS, Cosmic Ray, Grand Prix ( 69k )

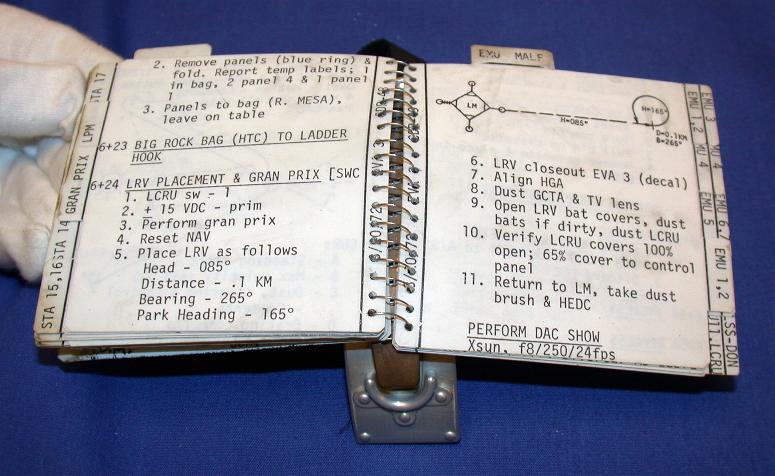

CDR-48, CDR-49: 6+10 LRV Placement ( 68k )

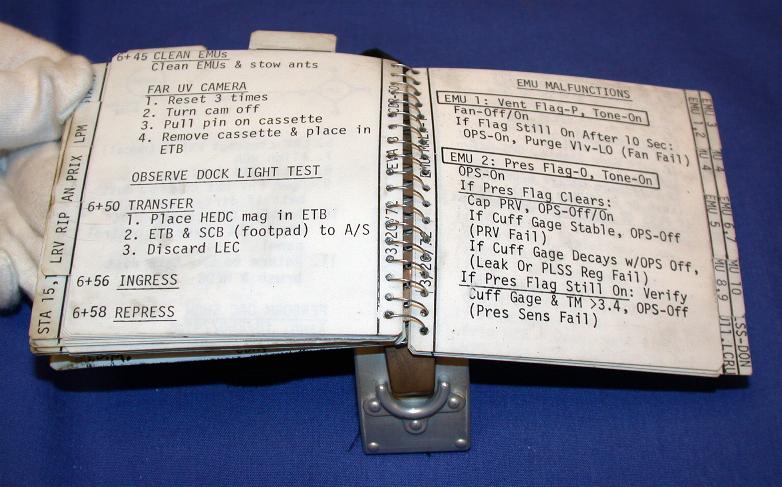

CDR-50, CDR-51: 6+45 Clean EMUs, UV Camera, Transfer, Ingress, EMU-1, 2 ( 72k )

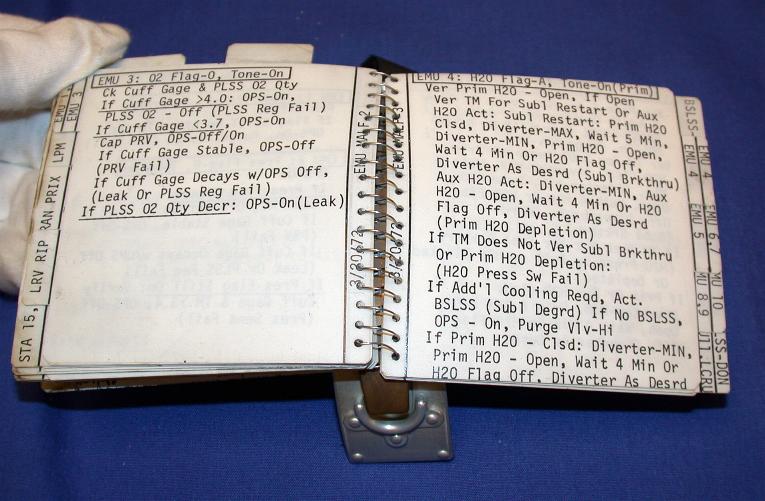

CDR-52, CDR-53: EMU-3, 4 ( 77k )

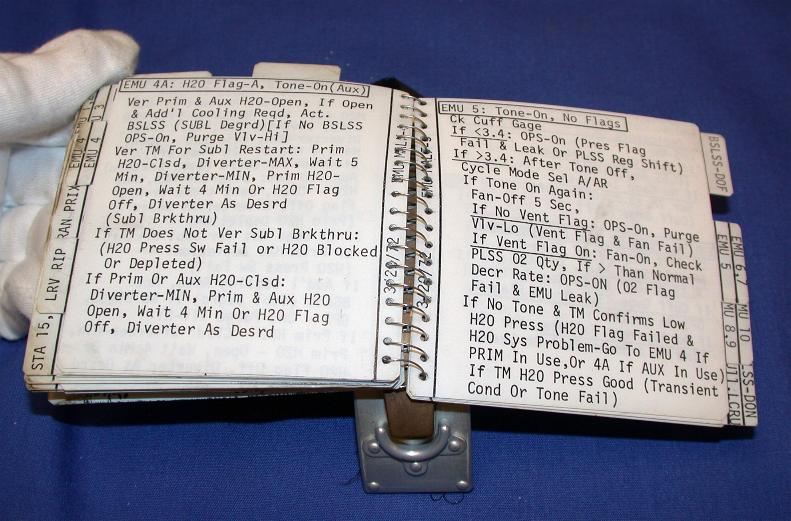

CDR-54, CDR-55: EMU-4A, 5 ( 90k )

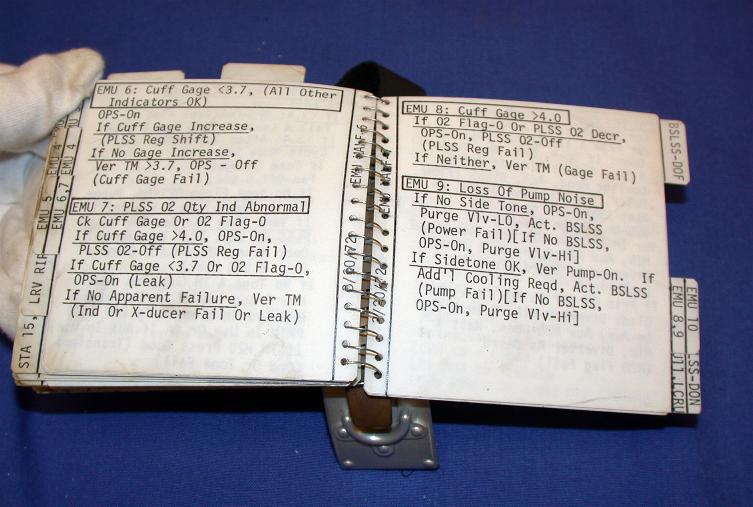

CDR-56, CDR-57: EMU-6, 7, 8, 9 ( 67k )

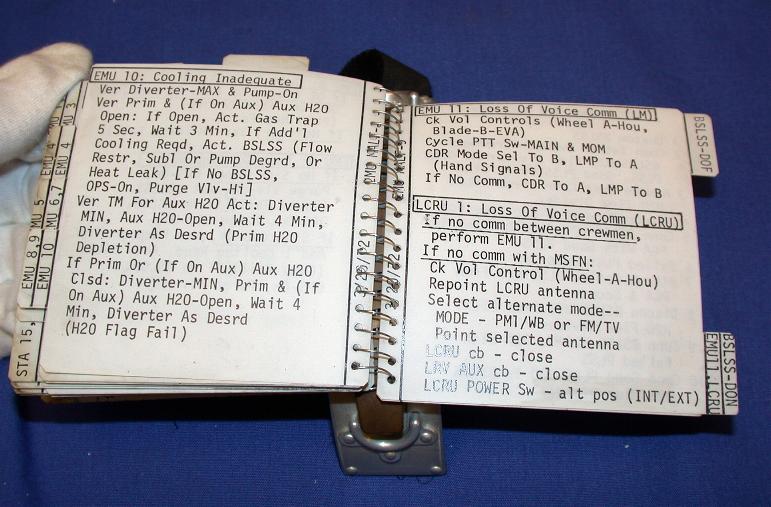

CDR-58, CDR-59: EMU-10, 11, LCRU-1 ( 82k )

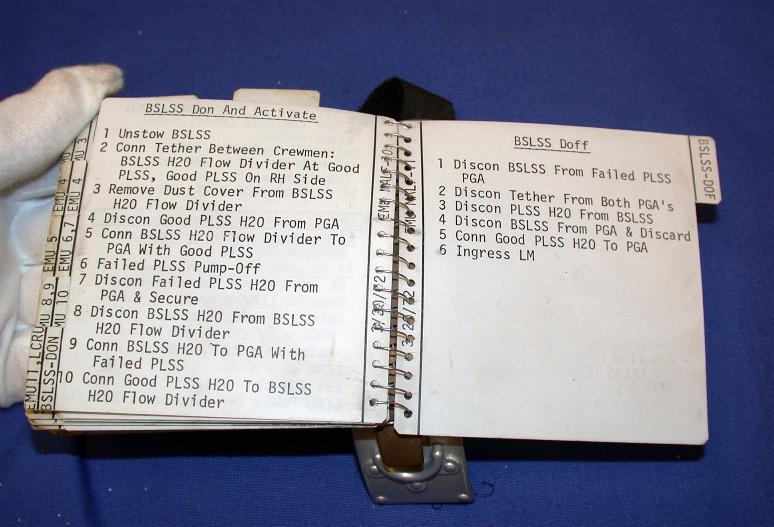

CDR-60, CDR-61: BSLSS ( 69k )

Apollo 16 LMP EVA-2/3 Cuff Checklist

These images were scanned from the Apollo 16 Final Lunar Surface Procedures.

LMP-04: 0+00 Cabin Depress, Prep, Egress ( 98k )

LMP-05: 0+28 Traverse Loadup, PLSS Loadup ( 128k )

LMP-06: 0+43 Pan, LRV Prep ( 92k )

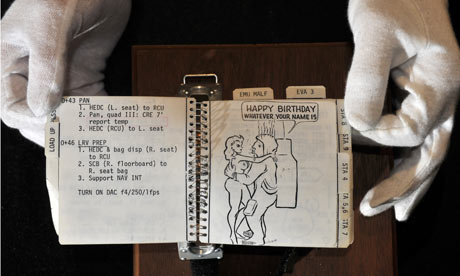

LMP-07: (Blank) This page may have been left blank so that pages 8 and 9 could be viewed together. In the flown checklist, the back-up crew inserted a drawing ( 32k ), which was reproduced in 27 April 2009 article in the Guardian about an upcoming auction that included this checklist. Acording to the article, Charlie gave the checklist as a thank-you to Back-up Commander Fred Haise.

LMP-08: Station 4 ( 137k )

LMP-09: Station 4 (cont.) ( 129k )

LMP-10: Station 5 ( 96k )

LMP-11: Station 6 ( 83k )

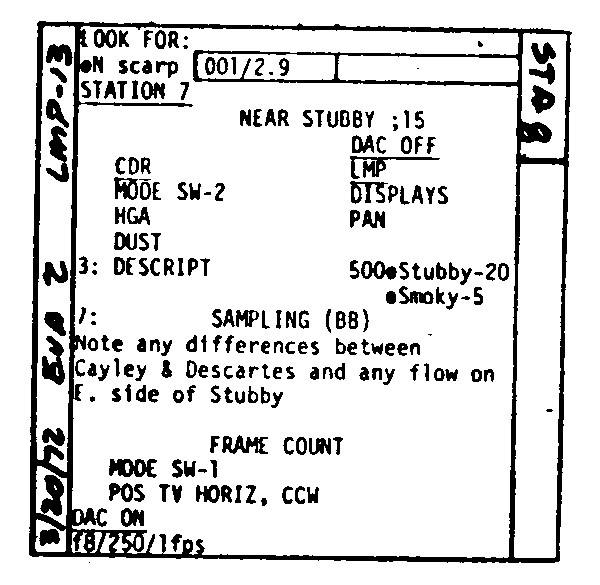

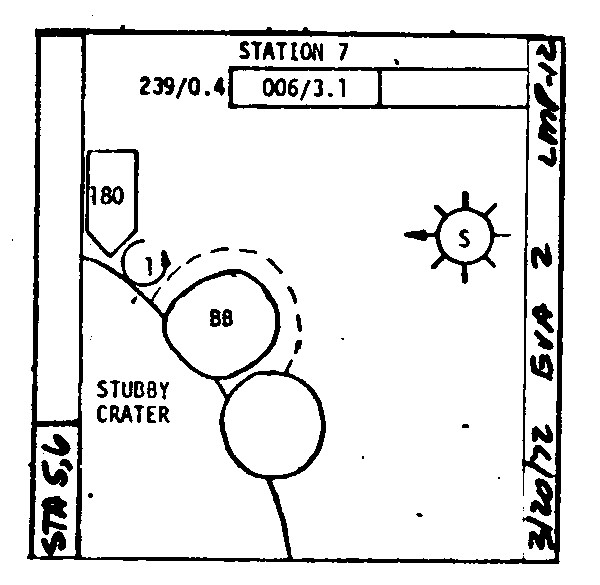

LMP-12: Station 7 ( 79k )

LMP-13: Station 7 (cont.) ( 113k )

LMP-14: Station 8 ( 89k )

LMP-15: Station 8 (cont.) ( 108k )

LMP-16: Contact Soil Sampling ( 104k )

LMP-17: Station 9 ( 101k )

LMP-18: Station 10 ( 100k )

LMP-19: Station 10 (cont.) ( 116k )

LMP-20: (blank)

LMP-21: 6+20 LRV Powerdown, TV, Unload PLSS ( 105k )

LMP-22: 6+34 Pack ETB, Clean EMUs ( 111k )

LMP-23: 6+42 Transfer, Repress ( 115k )

LMP-24: Boulder Tips ( 131k )

LMP-25: Boulder Tips (cont.) ( 175k )

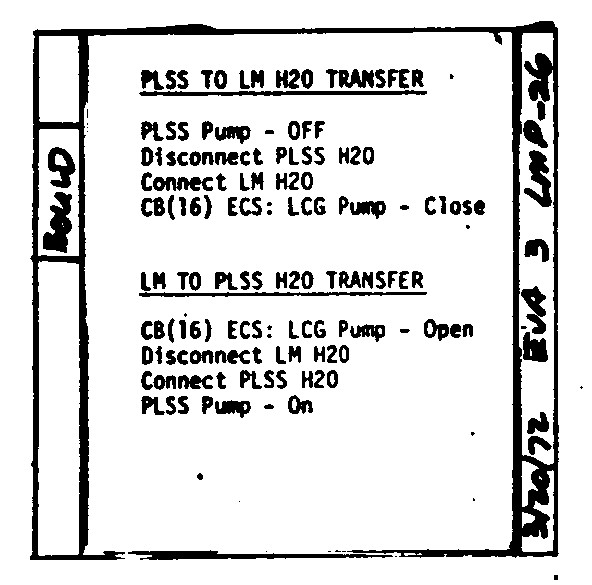

LMP-26: PLSS/LM H2O Transfer ( 92k )

LMP-27: 0+00 Depress, Prep, Egress ( 99k )

LMP-28: 0+21 Traverse Loadup ( 115k )

LMP-29: 0+21 PLSS Loadup, Pan, LRV Prep ( 108k )

LMP-30: Station 11 ( 130k )

LMP-31: Station 11 (cont.) ( 117k )

LMP-32: Station 12 ( 81k )

LMP-33: Station 12 (cont.) ( 91k )

LMP-34: Station 13 ( 77k )

LMP-35: (blank)

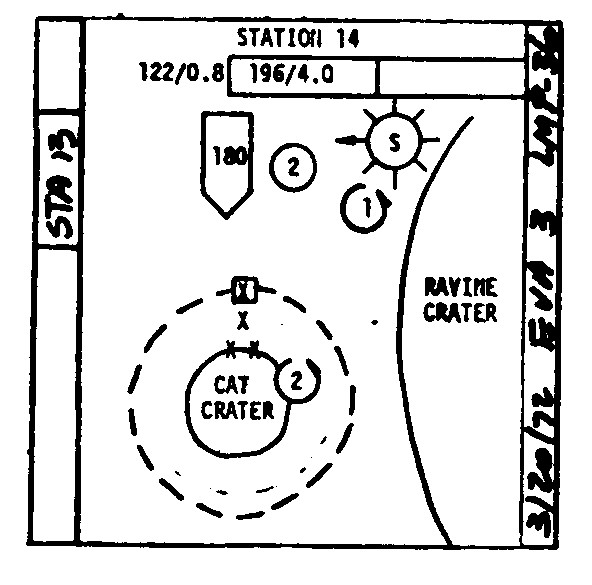

LMP-36: Station 14 ( 94k )

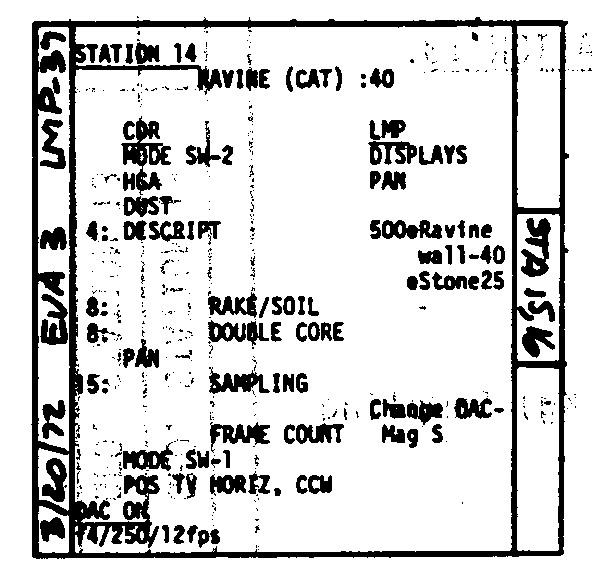

LMP-37: Station 14 (cont.) ( 121k )

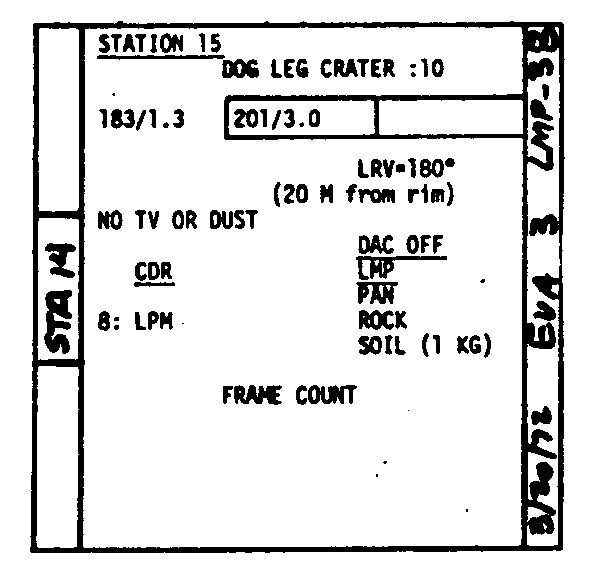

LMP-38: Station 15 ( 83k )

LMP-39: Station 16 ( 90k )

LMP-40: Station 17 ( 104k )

LMP-41: Station 17 (cont.) ( 106k )

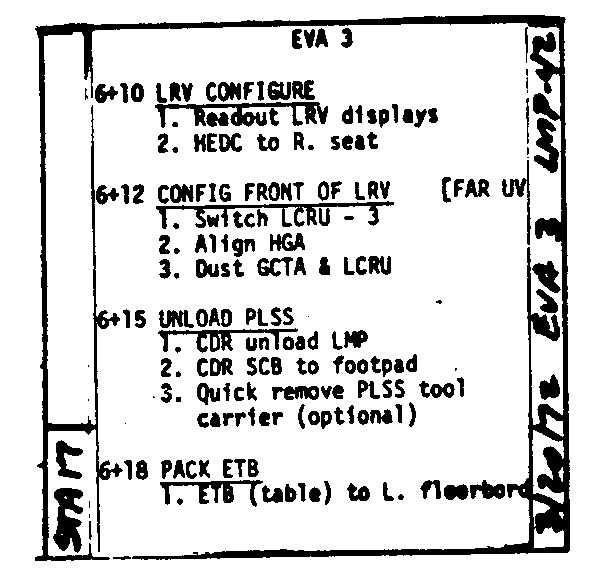

LMP-42: 6+10 LRV Config., Unload PLSS, Pack ETB ( 110k )

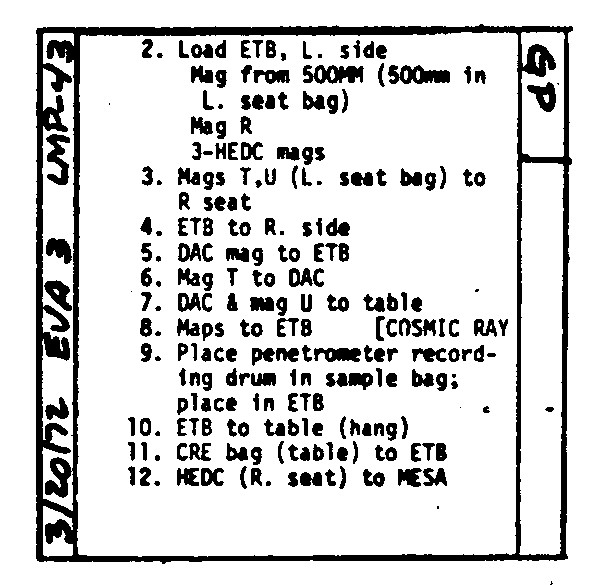

LMP-43: Pack ETB ( 121k )

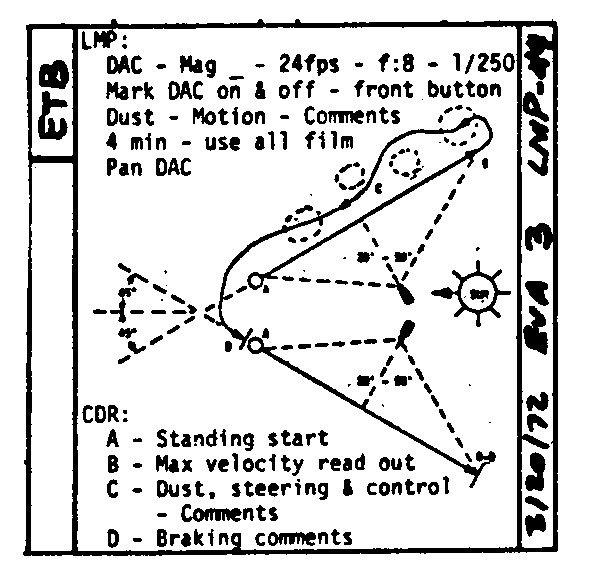

LMP-44: Gran Prix Diagram ( 121k )

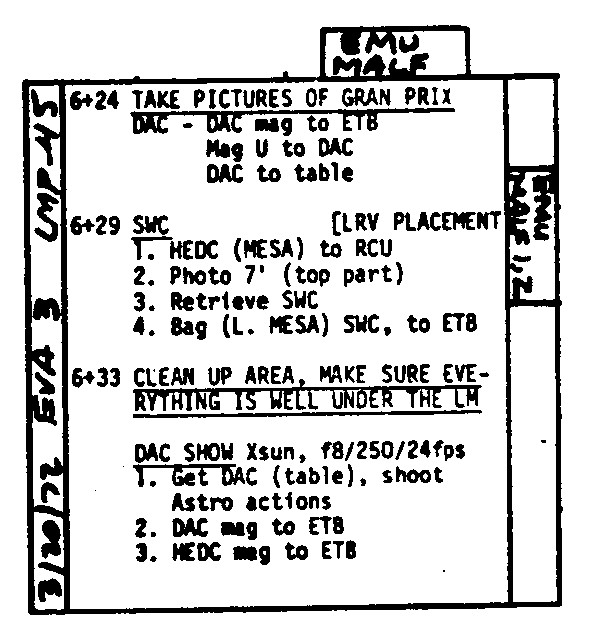

LMP-45: 6+24 Gran Prix, SWC, 'Astro Actions' ( 131k )

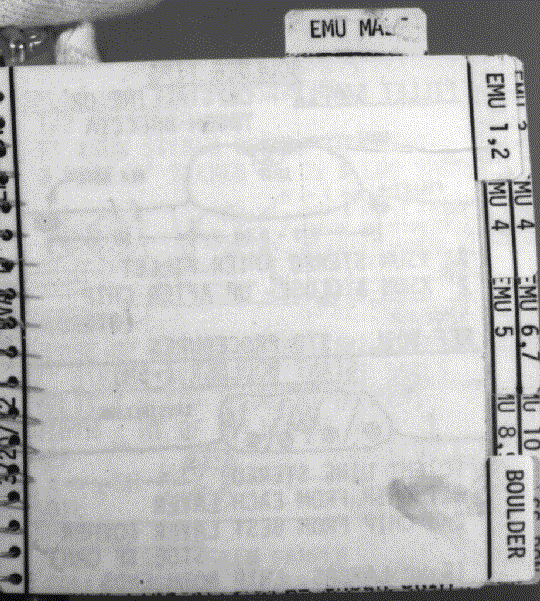

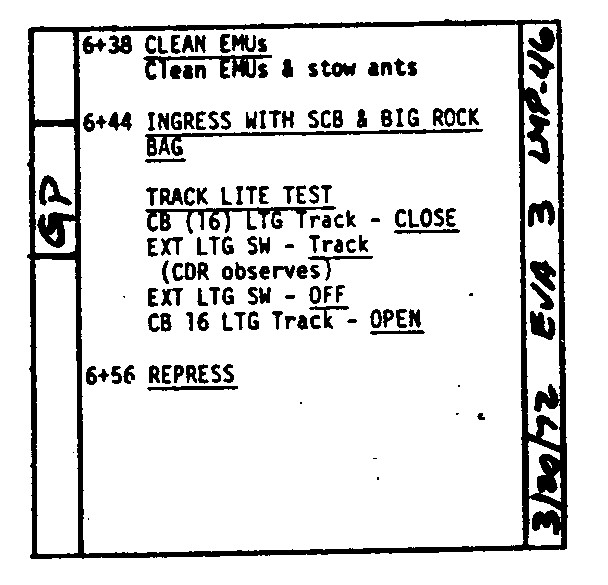

LMP-46: 6+38 Clean EMUs, Ingress, Repress ( 95k )

Charlie's EMU Malfunction Procedure pages are, of course, identical to John's.
