Project Apollo Technical Diagrams

This series of diagrams should be especially interesting and useful for modelers and other space enthusiasts who want to see "blueprints" of the Project Apollo spacecraft. Special thanks to Kipp Teague and Chris Gamble, who have scanned the images.

From Apollo Program Summary Report (April 1975)

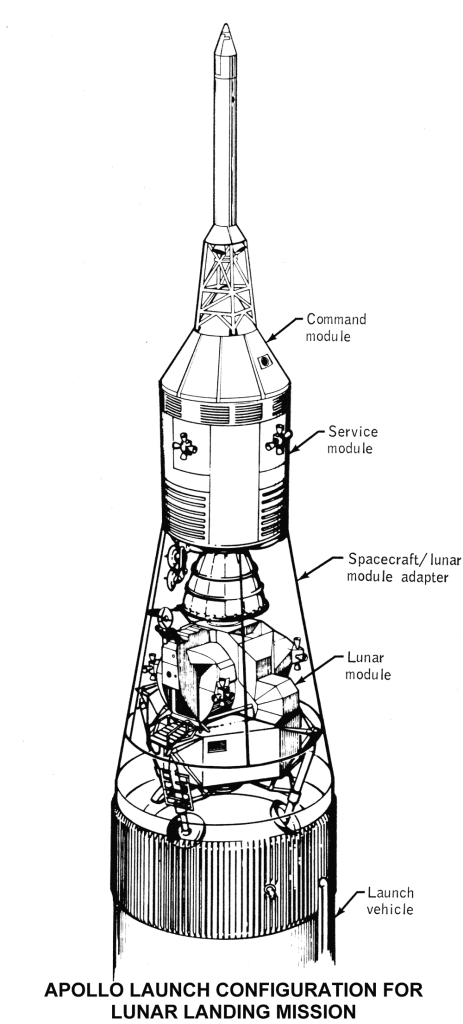

Technical diagram of the Apollo Spacecraft Launch
From Apollo Program Summary Report (April 1975)
Technical diagrams of the Apollo Command and Service Modules and Launch Escape System
From Apollo Training Manual "Apollo Spacecraft & Systems Familiarization" (March 13, 1968)
Labeled technical diagrams showing the Command Module interior
From Apollo Training Manual "Apollo Spacecraft & Systems Familiarization" (March 13, 1968)

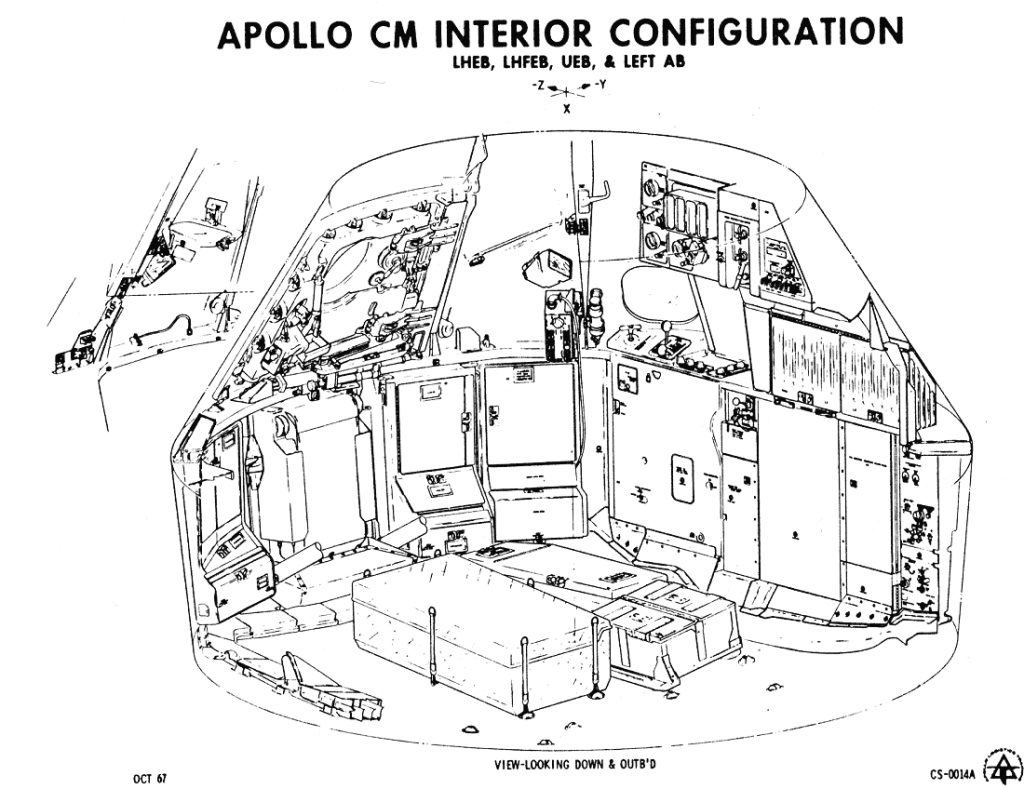

Diagram of the Apollo Command Module Interior
From Apollo Program Press Information Notebook (1972)

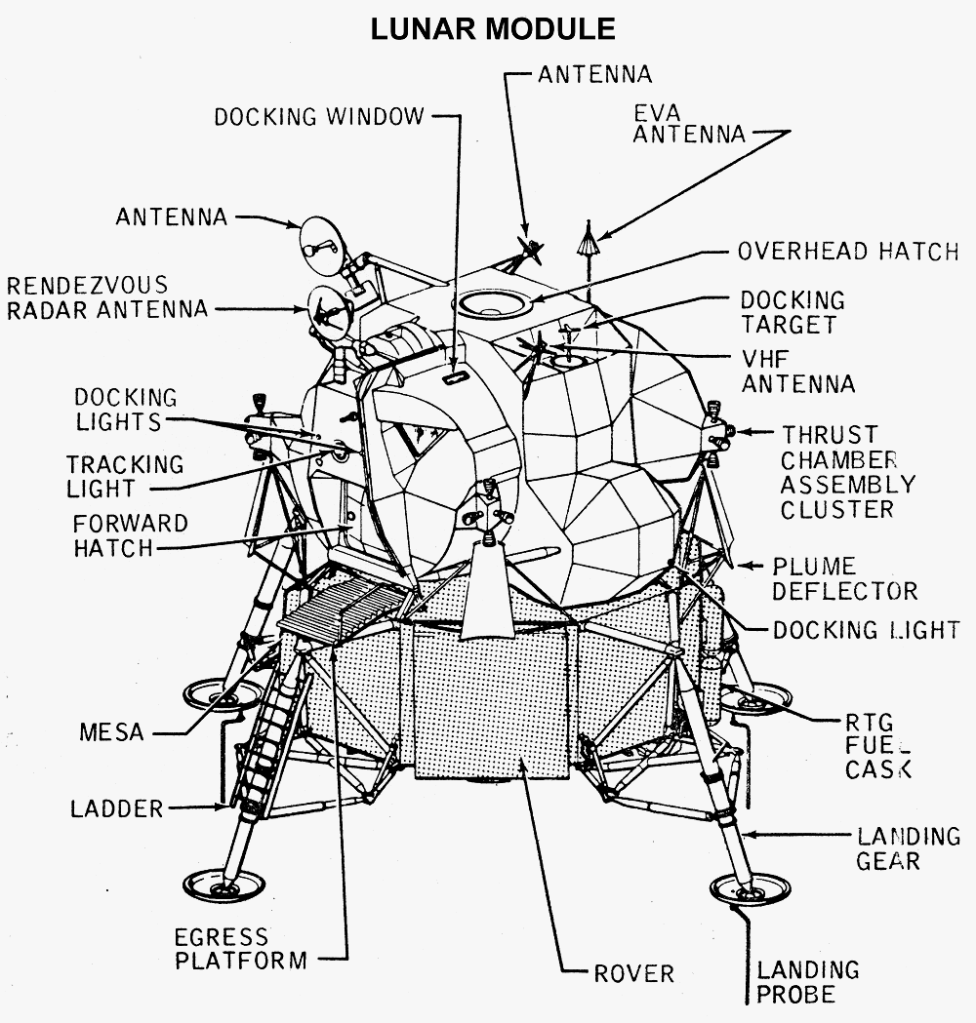

Labeled technical diagram showing the exterior of the Apollo Lunar Module
From Apollo Operations Handbook Block II Spacecraft (October 15, 1969)
Technical diagram of the Command Module Main Control Panel
From Apollo Operations Handbook Block II Spacecraft (October 15, 1969)
Technical diagram of the Command Module Main Control Panel - Left side panel
From Apollo Operations Handbook Block II Spacecraft (October 15, 1969)

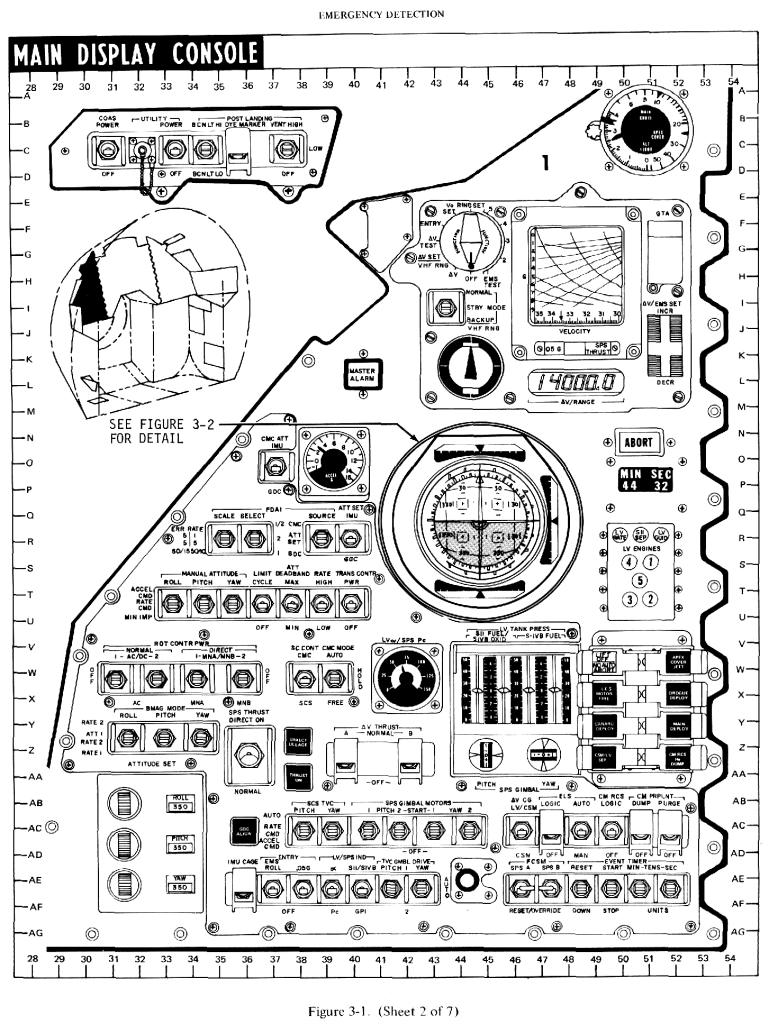

Technical diagram of the Command Module Main Control Panel - Left section
From Apollo Operations Handbook Block II Spacecraft (October 15, 1969)

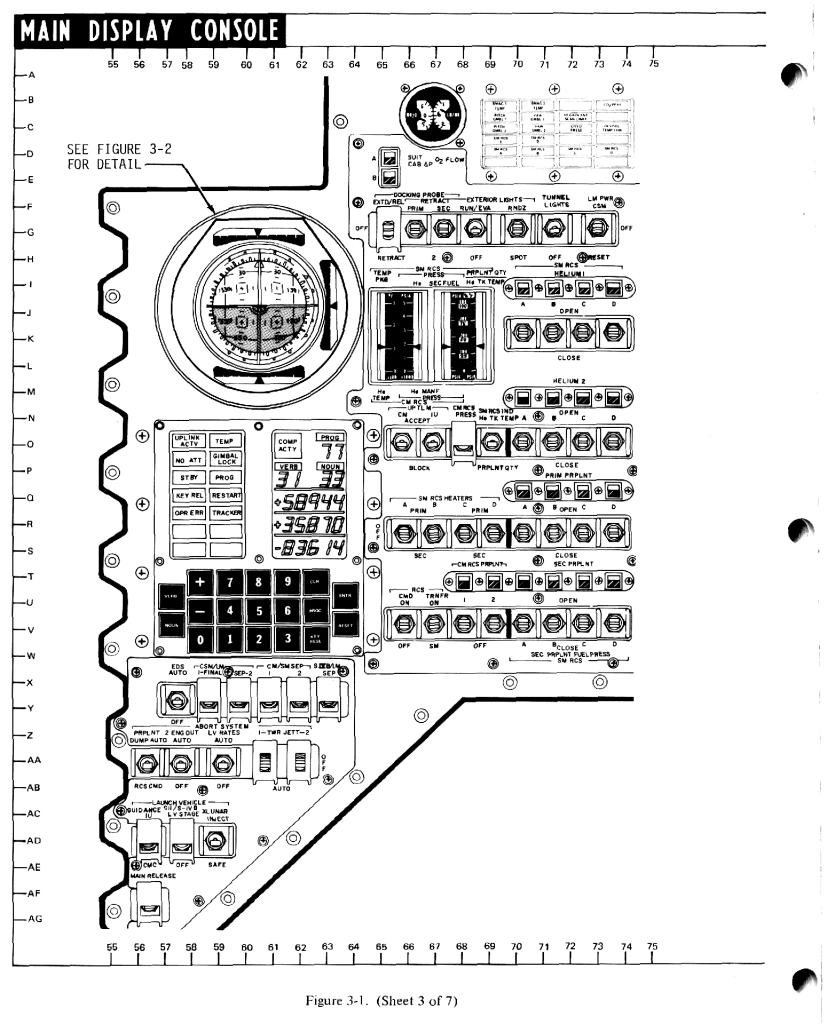

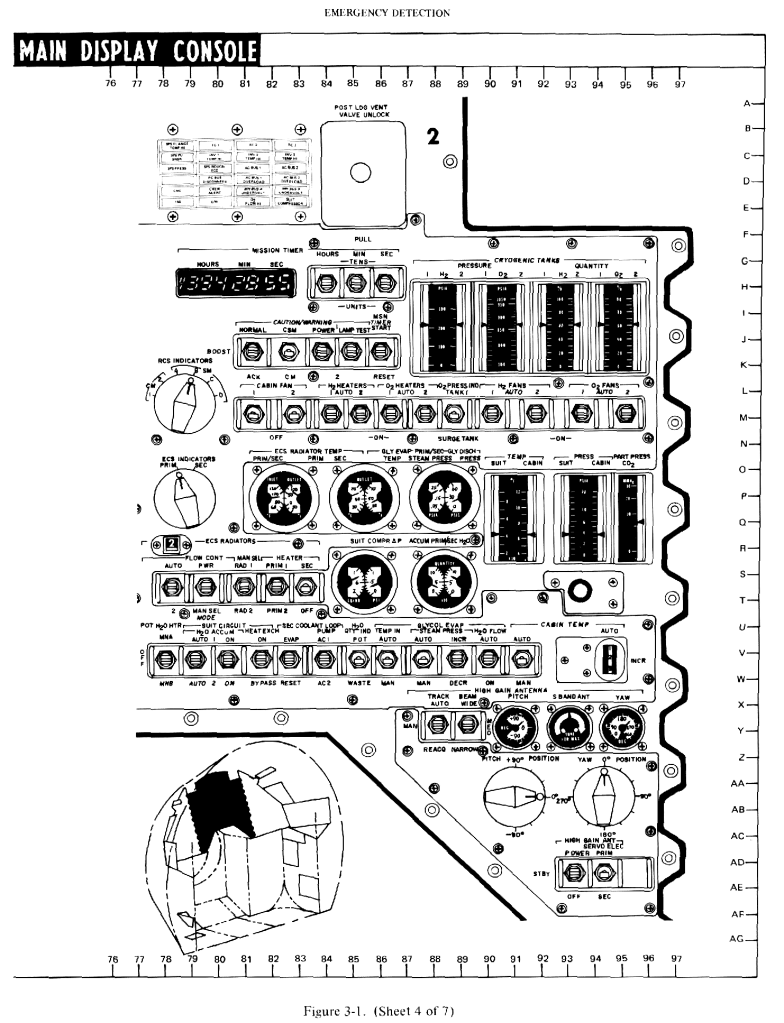

Technical diagram of the Command Module Main Control Panel - Middle left section
From Apollo Operations Handbook Block II Spacecraft (October 15, 1969)

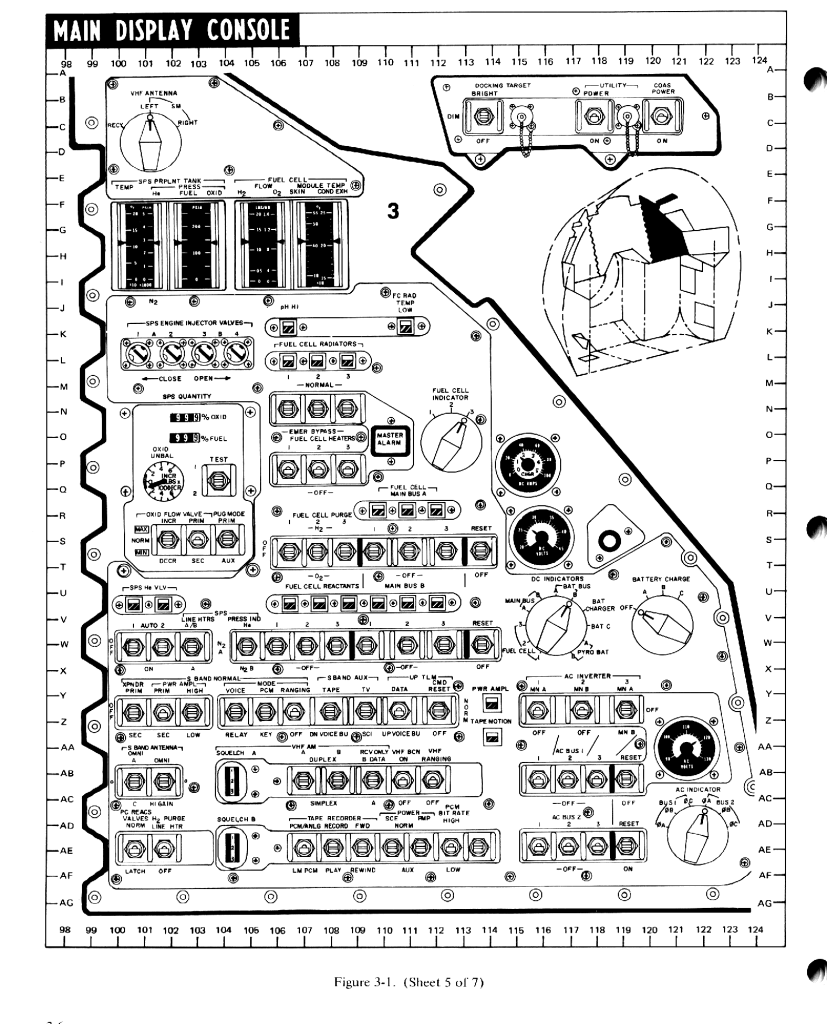

Technical diagram of the Command Module Main Control Panel - Middle right section
From Apollo Operations Handbook Block II Spacecraft (October 15, 1969)

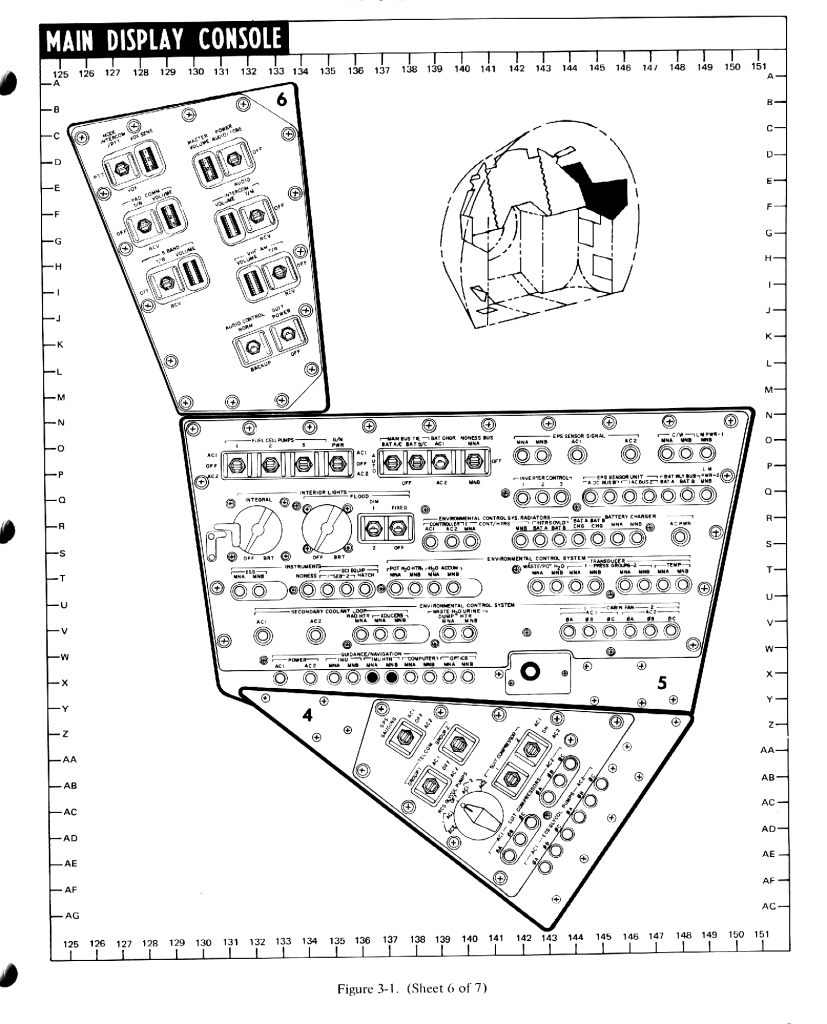

Technical diagram of the Command Module Main Control Panel - Right section
From Apollo Operations Handbook Block II Spacecraft (October 15, 1969)
Technical diagram of the Command Module Main Control Panel - Right side panel
From Apollo Training Manual "Apollo Spacecraft & Systems Familiarization" (March 13, 1968)
Labeled technical diagram of the Guidance Navigation and Control Systems
From Apollo Training Manual "Apollo Spacecraft & Systems Familiarization" (March 13, 1968)

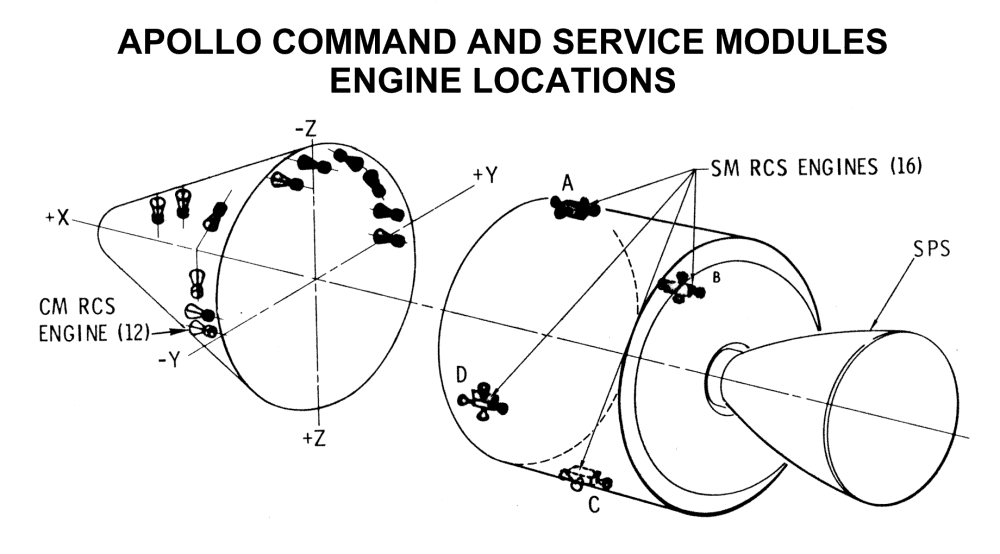

Labeled diagram of the Apollo Command and Service Module Engine Locations
From Apollo Training Manual "Apollo Spacecraft & Systems Familiarization" (March 13, 1968)
Diagram of the Apollo Stabilization and Control System
From Apollo Training Manual "Apollo Spacecraft & Systems Familiarization" (March 13, 1968)
Labeled technical diagram of the Apollo Spacecraft/LM Adapter
From Apollo Training Manual "Apollo Spacecraft & Systems Familiarization" (March 13, 1968)
Diagram showing a comparison of the Command and Service Modules vs the Lunar Module
From Apollo Program Summary Report (April 1975)
Technical diagram of the Lunar Module Landing Configuration
From Apollo Spacecraft News Reference

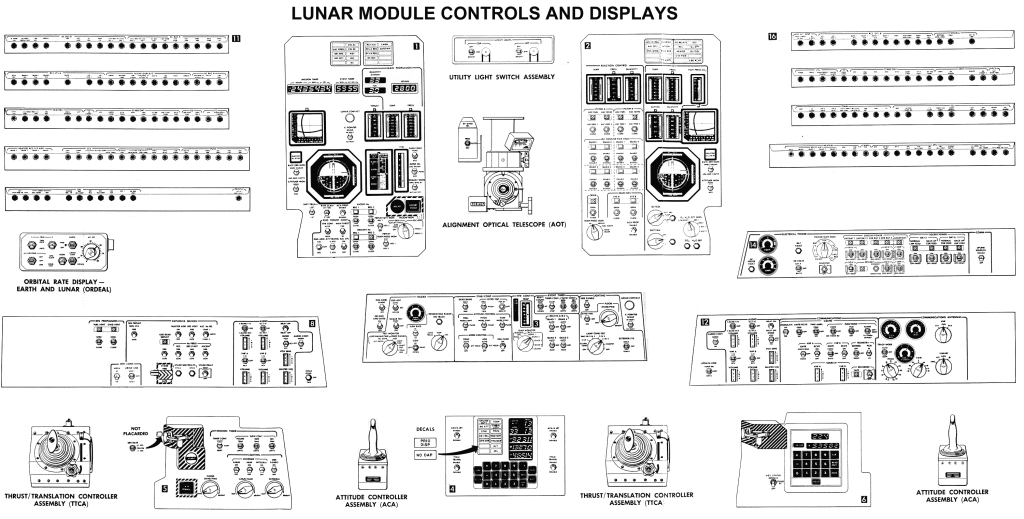

Technical diagram showing the Lunar Module Controls and Displays
From Apollo Program Press Information Notebook (1972)
Labeled technical diagram of the Lunar Module Ascent Stage
From Apollo Program Press Information Notebook (1972)

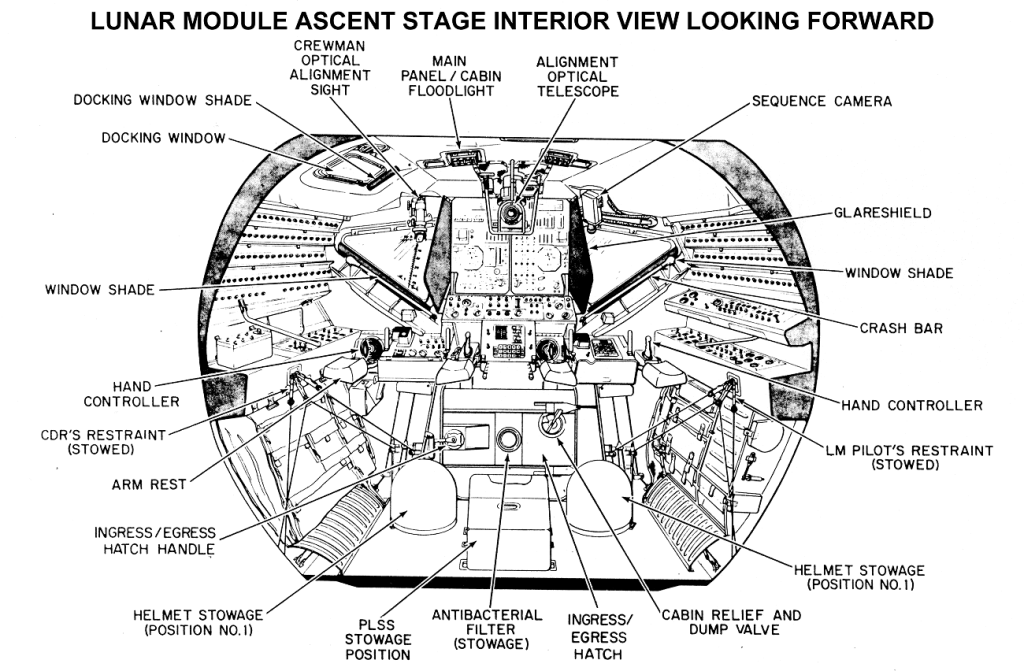

Technical diagram of the Lunar Module Ascent Stage Interior Looking Forward
From Apollo Program Press Information Notebook (1972)

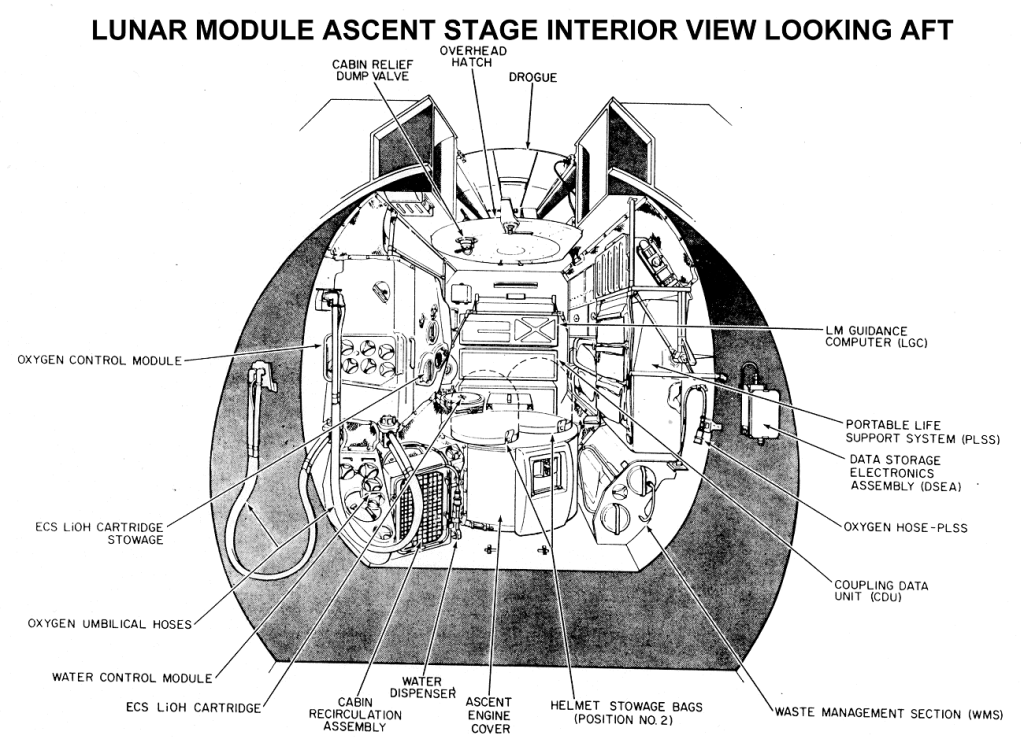

Technical diagram of the Lunar Module Ascent Stage Interior Looking Aft
From Apollo Program Press Information Notebook (1972)

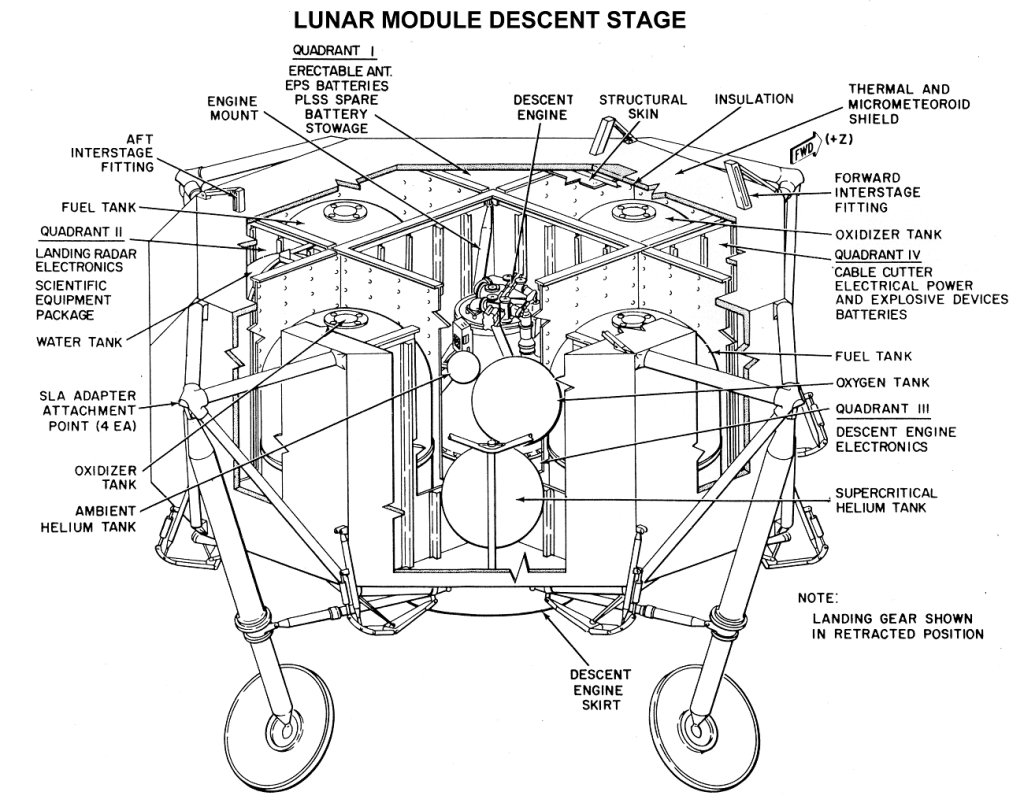

Technical diagram of the Lunar Module Descent Stage
