Test Technology: Angle Measurement
The angle of a model with respect to the freestream (angle of attack) must be known accurately in order to understand the forces on the model.
Focus Areas and Capabilities
Learn more about the specifications and capabilities of this facility.

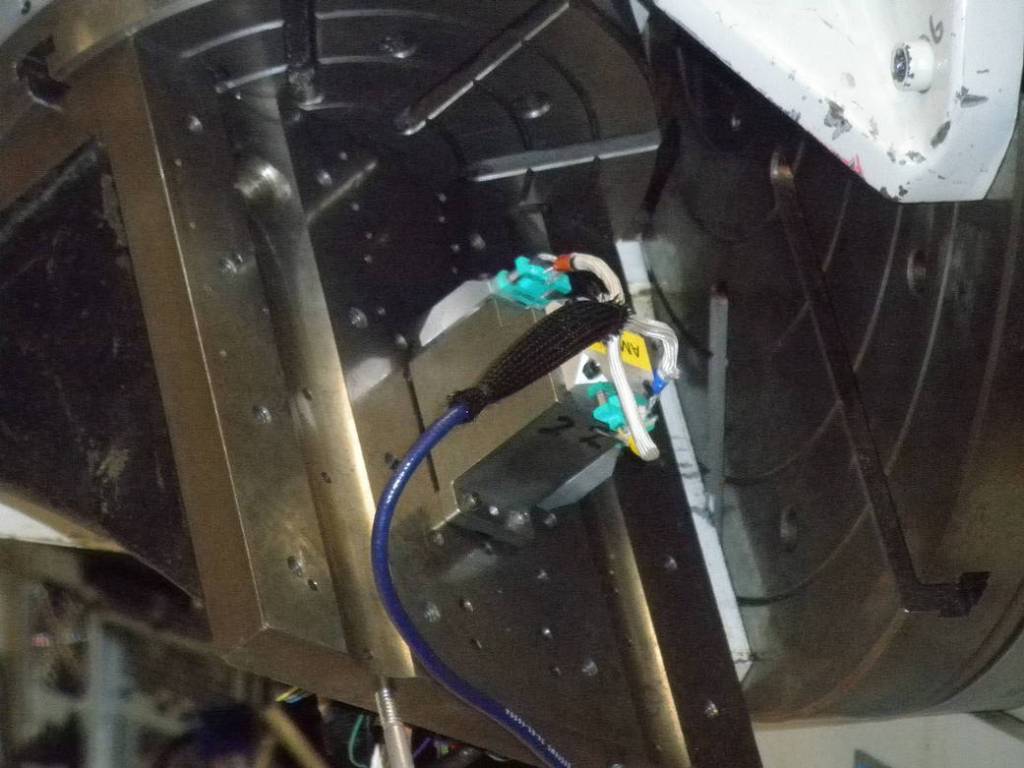

![Angle Measurement System (AMS) mounted onto angle calibration machinery.](https://www.nasa.gov/wp-content/uploads/2023/03/angle-gallery5.jpg?w=1024)
Quick Facts
The measurements that are taken of an aircraft's angle with respect to the flow field (angle of attack) typically rely on the angle of attack (AoA) measurement package or angle measurement system (AMS) that has been established. Ground testing angle of attack measurements may also depend on the system that is used for mounting the model that is being tested.

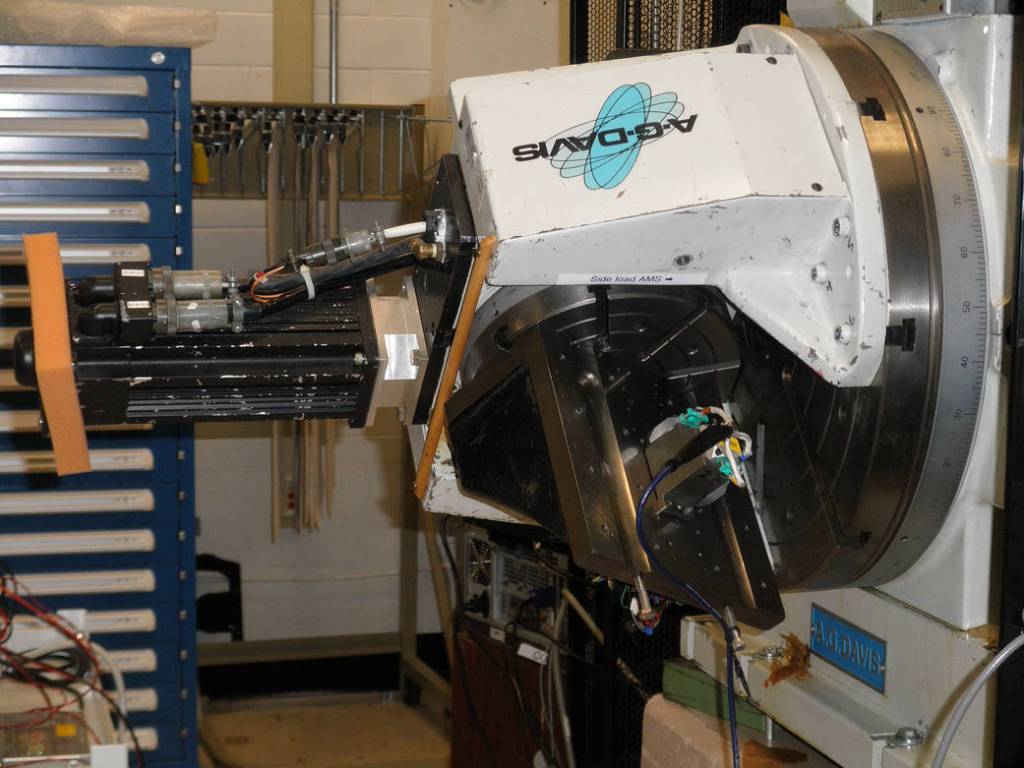

![Angle Calibration hardware for the AMS.](https://www.nasa.gov/wp-content/uploads/2023/03/angle-gallery4.jpg?w=1024)
Techniques
NASA’s angle measurement techniques address different types of instrumentation for establishing an adequate model angle with respect to the airflow. These techniques, as well as the information that is acquired, can also be applied in new ways to different situations to provide additional capabilities for research and design.

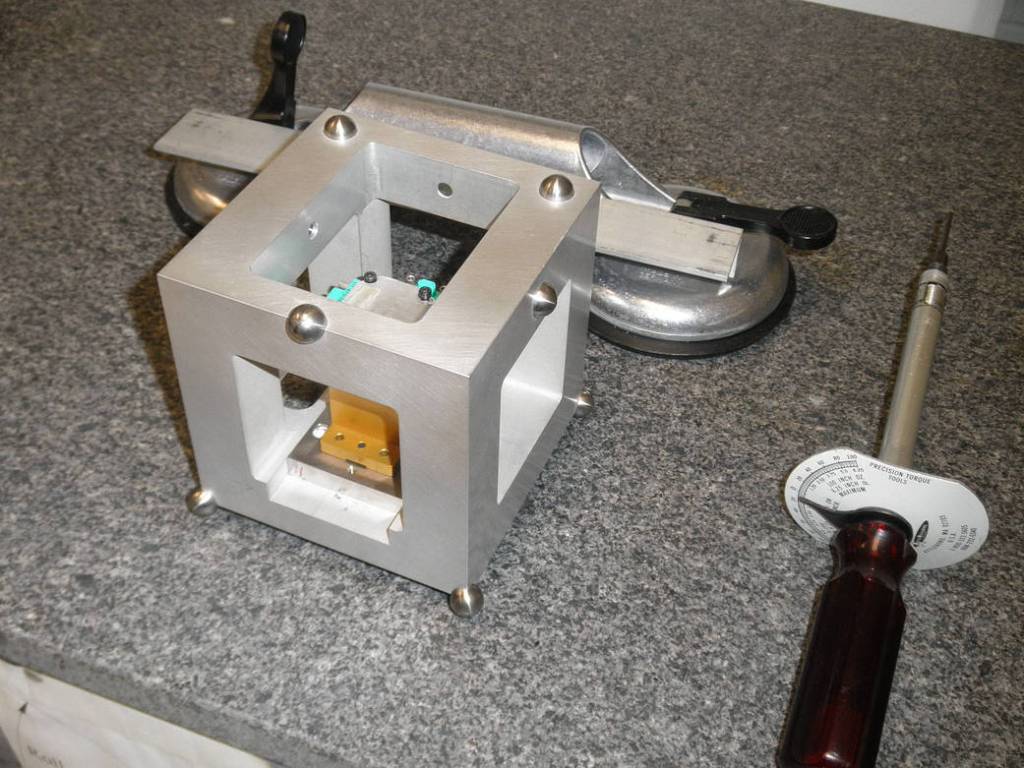

![Angle Measurement System In-field calibration verification (CUBE)](https://www.nasa.gov/wp-content/uploads/2023/03/angle-gallery2.jpg?w=1024)
Capabilities
NASA's angle measurement technologies have the capability to present different forms of information that come from known measurement techniques. New information and new usages that come from existing techniques may result in system improvements for both research and design.
