Globetrotting NASA Research Model Increases Accuracy

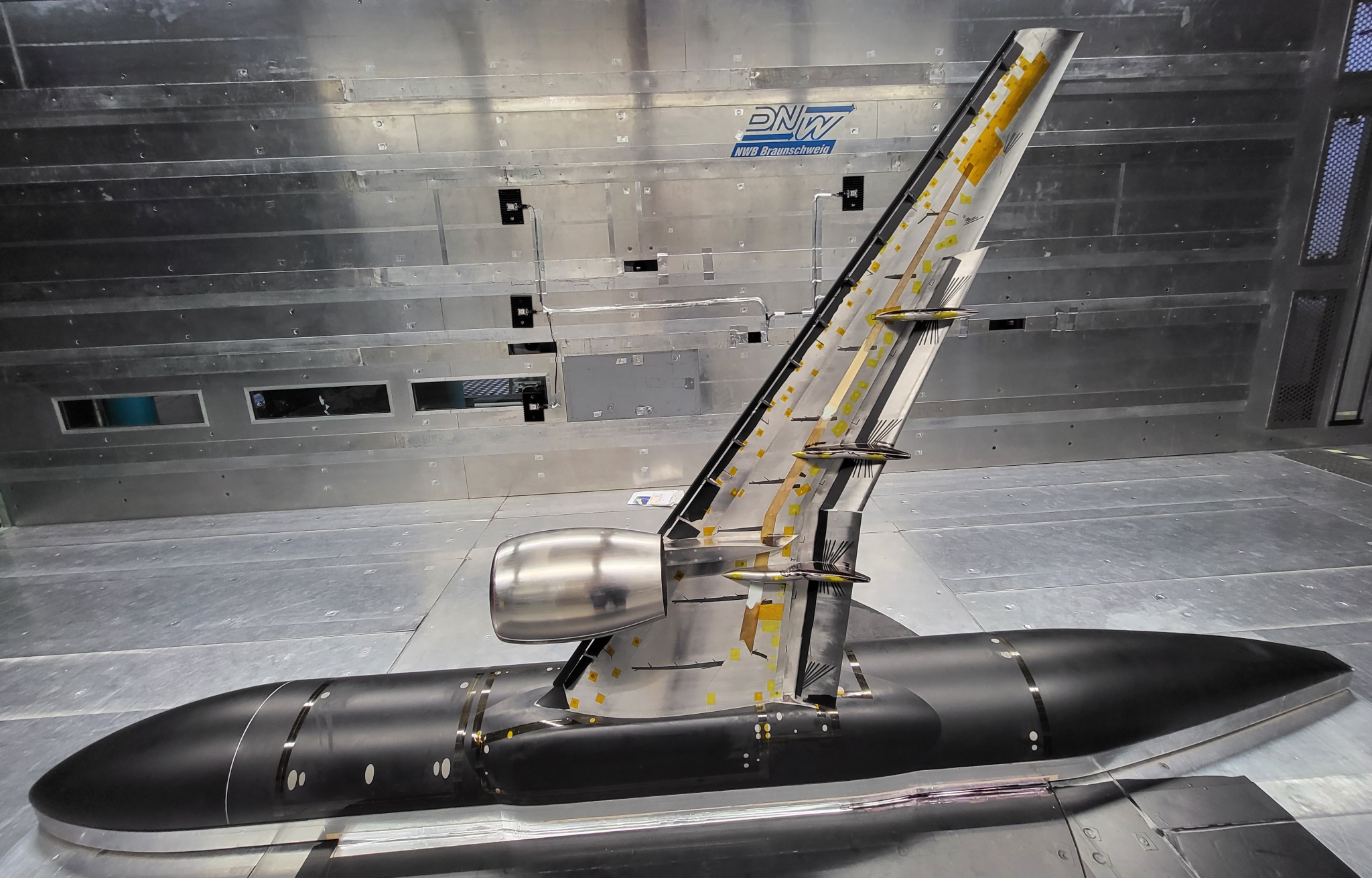

A silver-colored airplane research model sits in a wind tunnel facility. The model consists of a section of a scaled-down fuselage on the floor, with a single wing mounted vertically on it. The metallic wall of the wind tunnel is visible in the background.
The NASA 5.2% scale, semi-span version of the High Lift Common Research Model installed in the German-Dutch Wind Tunnels – Braunschweig Low-Speed Wind Tunnel in Braunschweig, Germany on May 4, 2023.
NASA

NASA and its international partners are using the same generically shaped wing design to create physical and digital research models to better understand how air moves around an aircraft during takeoff and landing.

Various organizations are doing computer modeling with computational tools and conducting wind tunnel tests using the same High Lift Common Research Model (CRM-HL), a NASA-led effort.

This ensures the aerospace community is getting accurate answers despite any differences in testing conditions or facilities.

What started as a voluntary partnership in 2019 has grown into the CRM-HL ecosystem with 10 partners across five countries. The team is building eight wind tunnel models, which will be tested at eight wind tunnels during the next three years.

What we are learning today would take us 10 years to do alone. The partners are using each other’s research for the mutual benefit of all.

Melissa Rivers

Melissa Rivers

NASA Researcher

“What we are learning today would take us 10 years to do alone,” said Melissa Rivers, subproject manager in NASA’s Transformational Tools and Technologies project, which leads the CRM-HL research. “The partners are using each other’s research for the mutual benefit of all.”

The team will define and assess common wind tunnel conditions in more than 14 tests across the globe.

“Through this research, we are learning about differences that occur when we build and test several identical airplane models in multiple wind tunnels,” Rivers said.

Researchers can use data from these wind tunnel tests to then check if the research tools using computational fluid dynamics are accurately predicting the physics of an aircraft.

“The computer simulations and computational fluid dynamics tools are key contributions from this international partnership,” said NASA’s Mujeeb Malik, a lead researcher for the project. “The runs [tests] are critical to figuring out what we do not know and determining what we want to test.”

The partners are developing a standard way to communicate their data so that everyone can better compare the results from their models and wind tunnel tests.

NASA also is developing a cloud-based solution to give each partner access to the data and foster collaboration.

This silent, 20-second video shows a computer simulation of air flowing over a 5.2% scale of NASA's High Lift Common Research Model wing design. The color key at lower right indicates the speed of the air.
NASA

Expanding Collaborations with Common Research Models

This high lift research effort builds on the success of a previous Common Research Model effort focused on transonic speeds.

Between 2008 and 2014, many organizations built their own versions of NASA’s model. They then tested the models in tunnels around the world.

The transonic model helped the community better understand the physics of aircraft at cruise. The current high lift model focuses on the takeoff and landing portions of flight when the aircraft is flying slower than at cruise.

Since there are more wind tunnels that can run low-speed tests, more partners can participate in the current collaboration.

The partners working on the CRM-HL span five countries – United States, United Kingdom, France, Germany, and Japan and include:

  • NASA
  • German Aerospace Center
  • National Office for Aerospace Studies and Research, the French Aerospace Lab
  • JAXA (Japan Aerospace Exploration Agency)
  • European Transonic Wind Tunnel
  • Aerospace Technology Institute
  • Boeing
  • Kawasaki Heavy Industries
  • QinetiQ
  • Airbus

Informing Community Initiatives

Data from the CRM-HL research effort also are driving NASA’s High Lift Prediction Workshop series. The series is sponsored by the Applied Aerodynamics Technical Committee of the American Institute of Aeronautics and Astronautics.

The workshops are intended to engage the broader aviation community in these efforts and inspire researchers around the world.

Another goal of this research is to help realize Certification by Analysis, which supports key objectives of the NASA Computational Fluid Dynamics Vision 2030 Study.

NASA, industry, and academia developed the study to lay out a long-term plan for developing future computational capabilities and meeting software and hardware needs for computational fluid dynamics.

The aerospace community will require these resources to efficiently make accurate predictions of how air moves around an aircraft. This work also informs the analysis and design of aircraft.

Certification by Analysis would significantly reduce the amount of flight tests required for an aircraft or engine to meet the requirements for airworthiness.

This could save aircraft development programs time and millions of dollars. It could also improve product safety and performance.

The Federal Aviation Administration (FAA) sets the requirements for airworthiness. Companies must provide test results to show new aircraft and engines meet the regulations.

“Before the FAA would allow this type of certification, the analysis must be as accurate as flight testing,” said Rivers.
